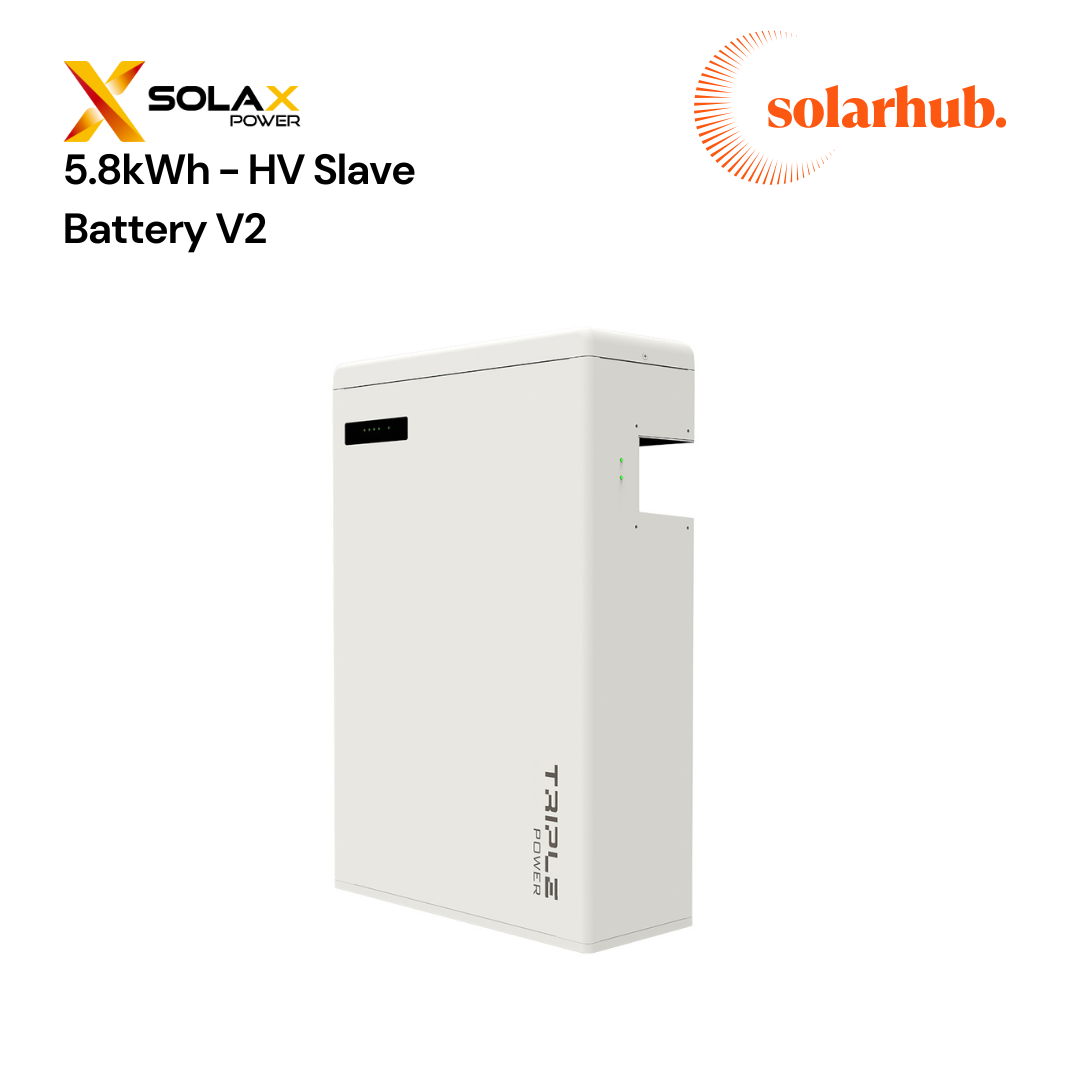

SolaX Triple Power High Voltage 5.8kWh Battery Slave V2

🔋 SolaX Triple Power 5.8kWh Slave Battery (V2)

The SolaX Triple Power 5.8kWh Slave Battery is the ideal extension for your energy storage system, perfectly compatible with X1-Hybrid, X3-Hybrid, and X1-AC inverters when paired with the LFP 5.8kWh Master Battery. Expand your storage capacity by adding this Slave Battery to your existing setup, scaling up to a total of 23.2kWh(charger dependent) when connected in series with a Master Battery.

⚡ System Flexibility:

• Single-Phase Systems: Use 1 or 2 Slave batteries with 1 Master (up to 3 batteries total).
• Three-Phase Systems: Use 2 or 3 Slave batteries with 1 Master (up to 4 batteries total).

🚀  Key Features:

• Scalable up to 23.2kWh storage
• Up to 4kW charge/discharge rate
• High Voltage design for reduced cable thickness
• Compact and Easy Installation – Plug & Play with all cables included
• 90% Depth of Discharge for optimized energy usage
• 6000+ Life Cycles for long-term reliability

🔋 Battery Specifications:

• Weight: 72.2 kg
• Battery Type: Lithium-Ion
• Nominal Energy: 5800Wh
• Voltage: 115V
• Continuous Discharge Rate: 2875W
• Maximum Discharge Rate: 4000W (5 minutes)
• Surge Discharge Rate: 4000W (15 seconds)
• Maximum Charge Rate: 4000W (5 minutes)

Important Note:
This is a Slave Battery (HV11550-58) and requires the HV-T-BAT-H-58 Master Battery to operate. It is ONLY compatible with LFP 5.8kWh Master Batteries (V2) and cannot be used with Generation 1 or 2 systems.

Extend your energy storage capabilities with the SolaX Triple Power 5.8kWh Slave Battery (V2) and enjoy scalable, efficient power for your home or business! ⚡💡
