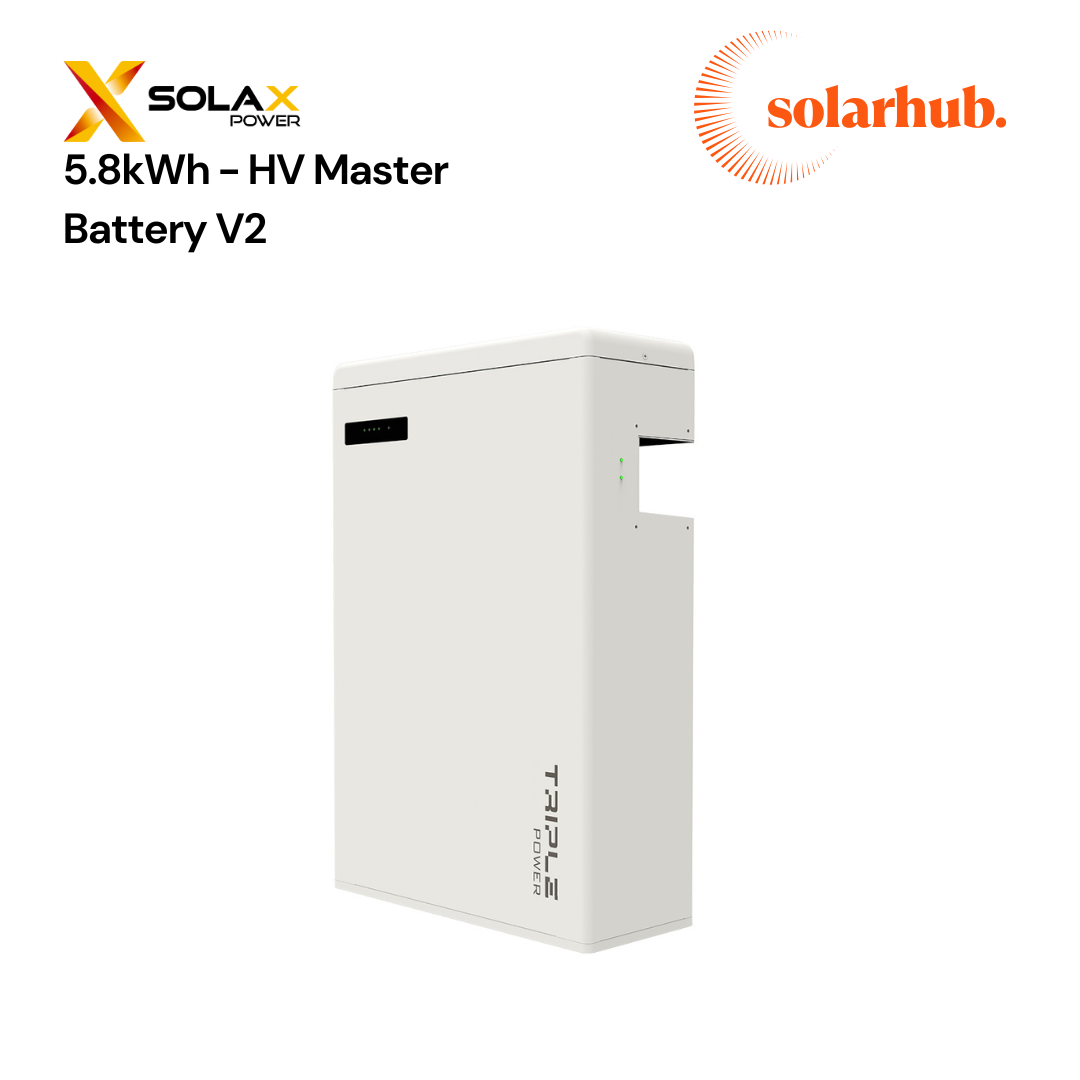

SolaX Triple Power High Voltage 5.8kWh Main Battery Master V2

Name: SolaX Triple Power High Voltage 5.8kWh Main Battery Master V2
Brand: SolaX
SKU: SRHHV-58-MASTER-V2
Price: 1400.00 GBP
Availability: InStock

£1,400.00

~~£2,348.65~~ £1,400.00

Sale Sold out

Quantity

🔋 SolaX Triple Power LFP 5.8kWh Battery – Master & Slave Models Available

The SolaX Triple Power LFP Battery is the perfect energy storage solution for X1-Hybrid, X3-Hybrid, and X1-AC inverters. Available in both Master (5.8kWh) and Slave (5.8kWh) configurations, this scalable battery system allows for flexible energy storage options to meet your needs. Each Master unit can be paired with up to 3 Slave batteries for a total storage capacity of 23.2kWh (charger dependent).

⚡ System Flexibility:

For Single-Phase Systems: Connect 1 or 2 Slave batteries with 1 Master (up to 3 batteries total).

For Three-Phase Systems: Connect 2 or 3 Slave batteries with 1 Master (up to 4 batteries total).

🚀 Key Features:

Scalable up to 23.2kWh storage

Up to 4kW charge/discharge rate

High Voltage design for thinner cables

Compact and Easy to Install – Plug & Play with all cables included

90% Depth of Discharge for efficient energy usage

6000+ Life Cycles for long-lasting performance

🔋 Battery Specifications:

Weight: 72.2 kg

Battery Type: Lithium-Ion

Nominal Energy: 5800Wh

Voltage: 115V

Continuous Discharge Rate: 2875W

Maximum Discharge Rate: 4000W (5 minutes)

Surge Discharge Rate: 4000W (15 seconds)

Maximum Charge Rate: 4000W (5 minutes)

Important Note:
Triple Power LFP 5.8kWh Slave Batteries are compatible ONLY with LFP 5.8kWh Master Batteries (V2). These are NOT compatible with Generation 1 or 2 BMS or batteries.

Upgrade your energy storage today with the SolaX Triple Power LFP 5.8kWh Battery and enjoy reliable, scalable, and efficient power storage! ⚡💡
