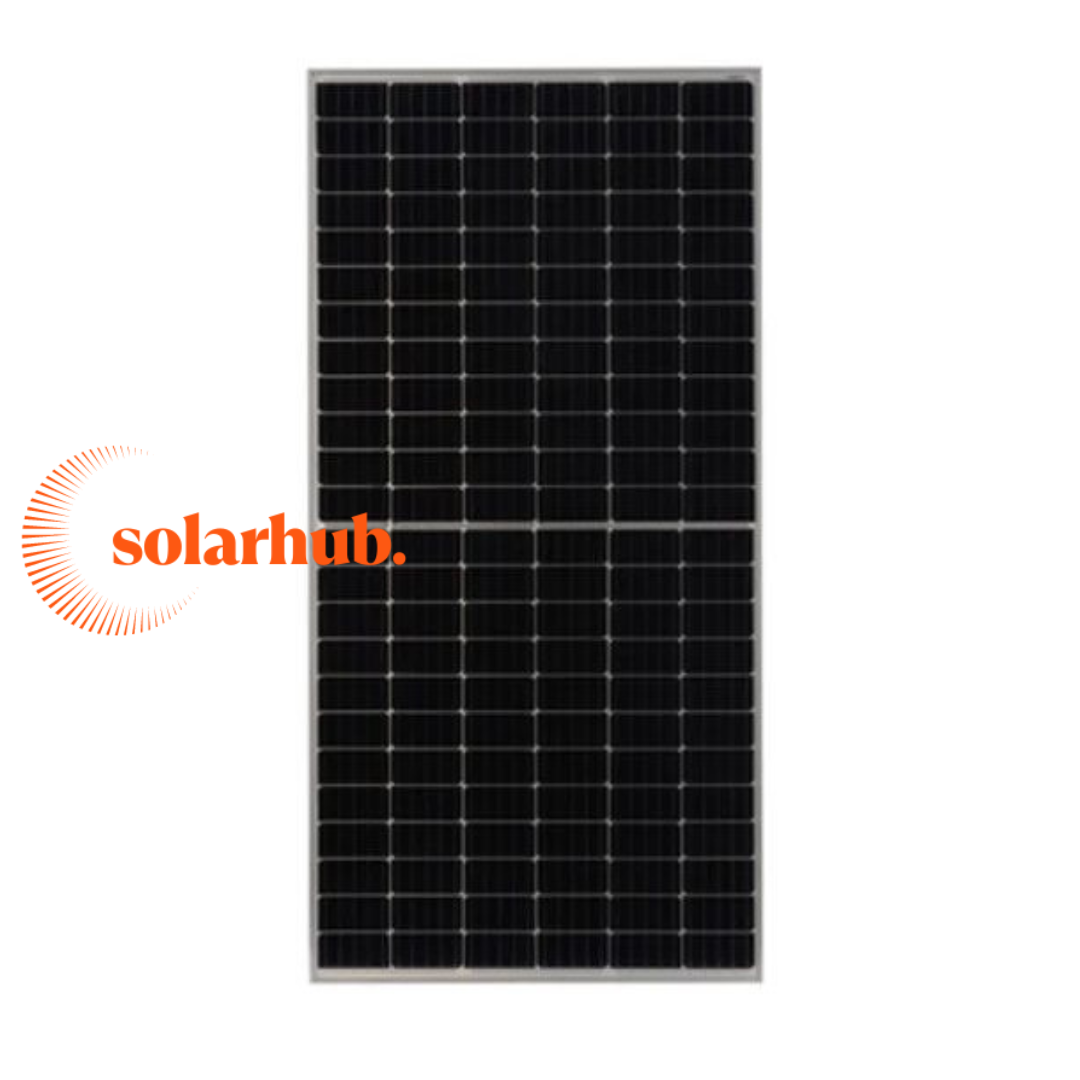

620W DAS Solar N-Type Silver Frame - 2382 X 1134
620W DAS Solar N-Type Silver Frame - 2382 X 1134
Couldn't load pickup availability
The DAS Solar 620 W Commercial Module combines advanced N-Type TOPCon bifacial cell technology with premium commercial-grade construction. Designed for industrial and large-scale rooftop or ground-mount installations, its exceptional output, efficiency and durability make it a standout in high-performance solar.
Key Features
-
620 W maximum power output — one of the highest per-panel outputs available.
-
Module efficiency up to ~23.0% — enabling superior energy yield in commercial arrays.
-
N-Type TOPCon bifacial technology — double glass design, capable of up to ~30% extra energy from rear side under favourable conditions.
-
Module dimensions — 2,382 mm × 1,134 mm × 30 mm, weighing ~31.9 kg.
-
High durability ratings — front load 5,400 Pa, back load 2,400 Pa; operating temperature range –40 °C to +85 °C.
-
1500 V system voltage compatible — ideal for large commercial installations.
-
Warranty — 15-year materials and workmanship warranty; 30-year linear performance warranty ensuring long term return on investment.
Technical Specification (Summary)
| Parameter | Specification |
|---|---|
| Maximum Power (P max) | 620 W (STC) |
| Efficiency | Up to 23.0% |
| Open Circuit Voltage (Voc) | ~48.35 V |
| Short Circuit Current (Isc) | ~16.12 A |
| Dimensions (L × W × D) | 2,382 mm × 1,134 mm × 30 mm |
| Weight | ~31.9 kg |
| Operating Temp Range | –40 °C to +85 °C |
| System Voltage | 1,500 V DC |
| Load Capacity | Front: 5,400 Pa / Back: 2,400 Pa |
