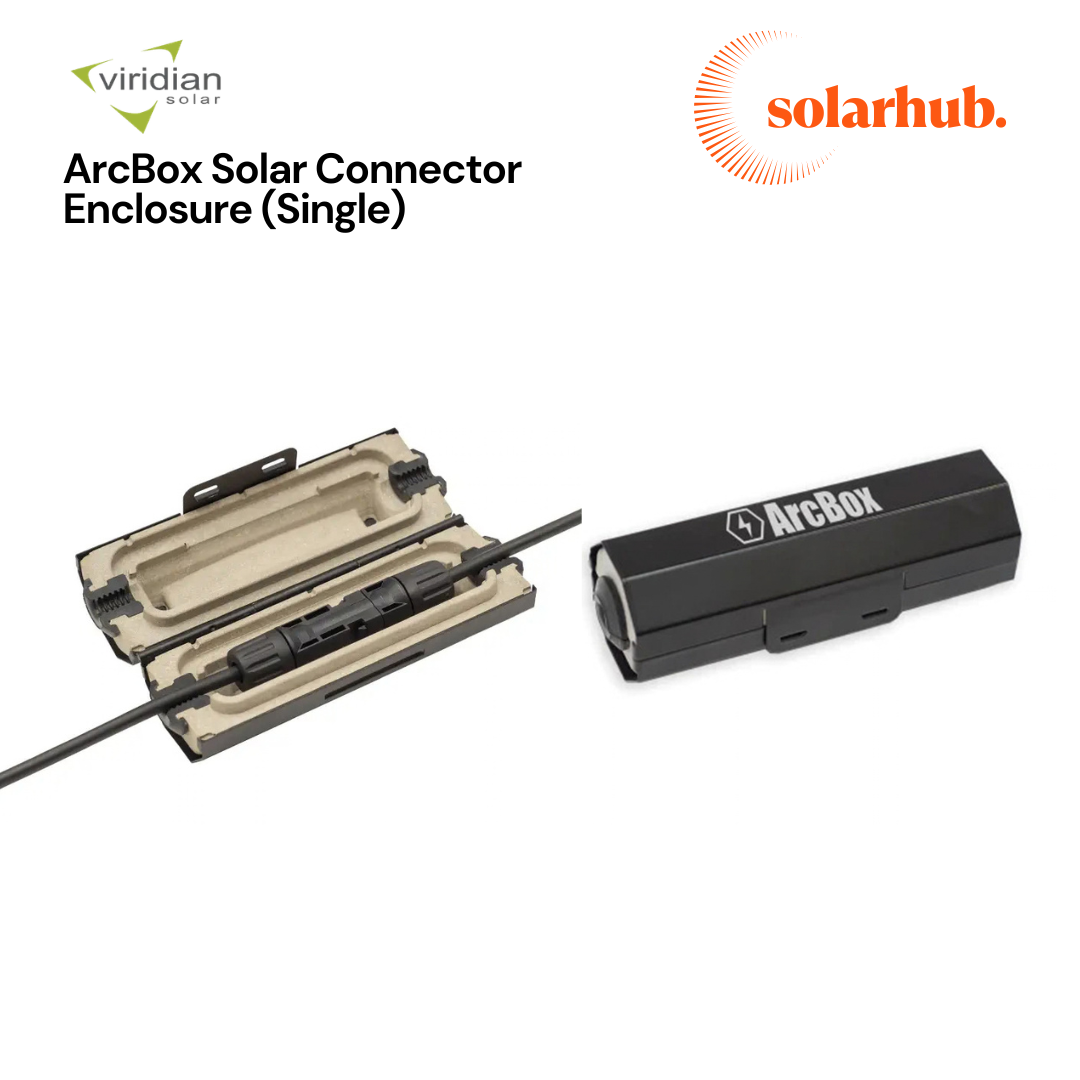

ArcBox Solar Connector Enclosure (Single)

ArcBox is a simple, easy-to-install safety device designed to help contain DC arc faults at solar PV connector points. The enclosure surrounds the DC connector with a high-temperature ceramic material, helping to contain an arc and reduce the risk of it spreading to nearby combustible materials within the solar installation.

The effectiveness of ArcBox has been independently verified through fire testing by KIWA Fire Testing Laboratory and Loughborough University.

DC connector faults can occur through a number of installation issues, including poor crimping, cross-mating connectors from different manufacturers, incomplete connector engagement or connections made in wet conditions. ArcBox provides an additional layer of protection around these vulnerable connection points.

Key Features

• Designed to help contain DC arc faults
• High-temperature ceramic enclosure
• Helps reduce the risk of arc faults spreading to combustible materials
• Independently tested by KIWA Fire Testing Laboratory and Loughborough University
• Helps protect nearby roof battens, membranes and other combustible materials
• Helps prevent moisture accumulation around the DC connection
• Can help reduce corrosion and associated future arcing risks
• Quick and straightforward installation
• Suitable for residential and commercial solar PV installations
• Particularly useful for higher-risk or critical locations such as schools, care homes and hospitals

Installation

ArcBox is designed to be secured using the supplied mounting bracket, which is suitable for 22–25mm thick roof battens.

Once the bracket has been hooked onto the batten, the ArcBox simply clips onto the bracket, providing a secure and tidy installation around the DC connector.

Solar Hub Comment

ArcBox provides installers with a practical additional safety measure at one of the most critical points within a PV installation — the DC connector. Its compact design makes it straightforward to incorporate into both residential and commercial solar installations without significantly complicating the installation process.

Ideal for new installations and particularly valuable where additional fire-risk mitigation is required around PV cabling and connectors.
