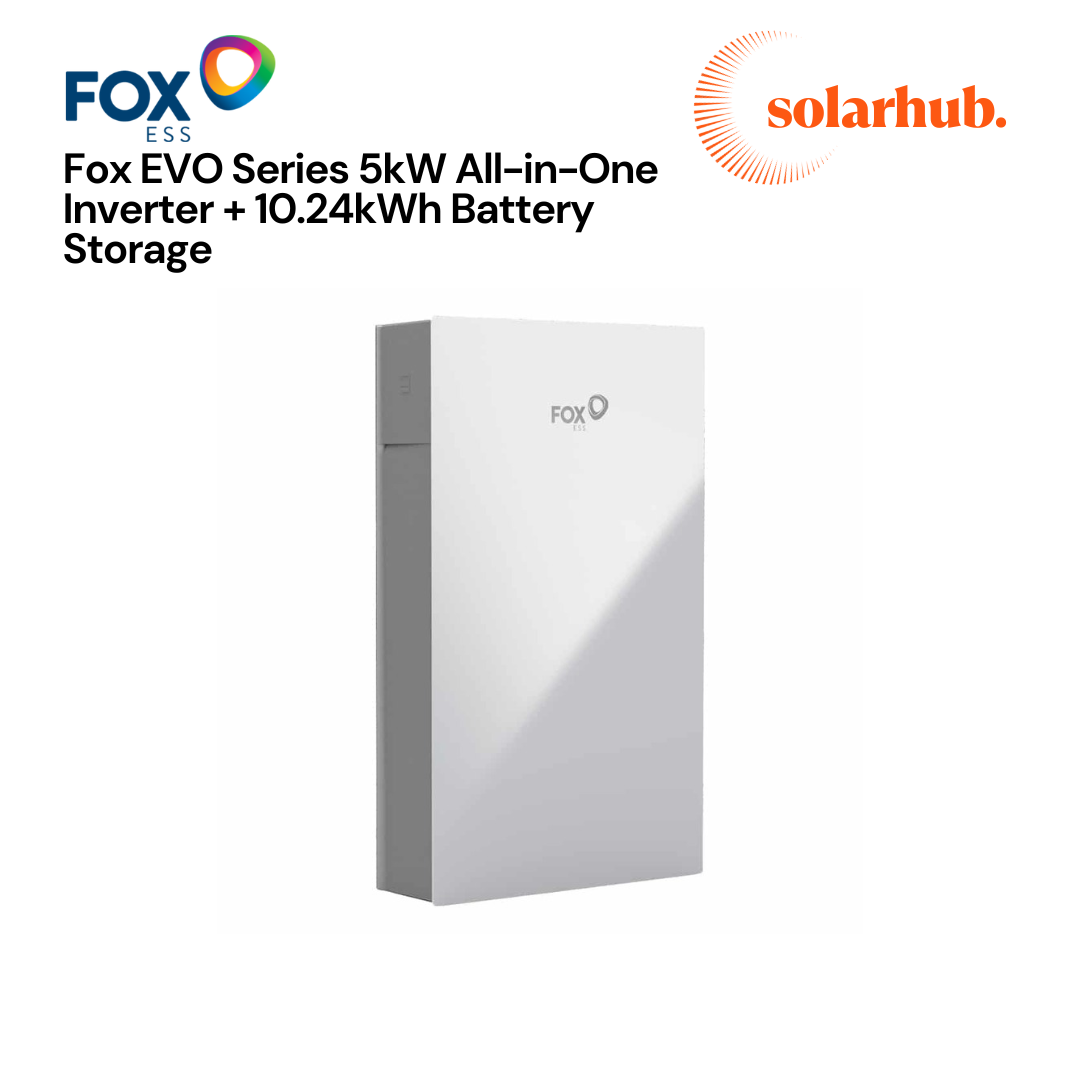

Fox ESS EVO10-5H 5kW Hybrid Inverter & 10.24kWh Battery Storage System

All-in-One Solar & Battery Storage Solution

The Fox ESS EVO10-5H combines a powerful 5kW hybrid inverter with a 10.24kWh lithium iron phosphate (LiFePO₄) battery in a single, sleek unit, delivering a complete energy storage solution for modern homes.

Designed for both indoor and outdoor installations, the EVO Series simplifies installation while providing industry-leading performance, intelligent energy management, integrated backup power, and future scalability.

Whether you're looking to maximise solar self-consumption, reduce energy bills, or gain protection against power outages, the EVO10-5H offers everything required in one compact package.

Available from Solar Renewable Hub with nationwide delivery and dedicated technical support.

Key Features

• Integrated 5kW Hybrid Inverter
• Integrated 10.24kWh LiFePO₄ Battery
• All-in-One Design
• 3 Independent MPPTs
• Built-In EPS (Emergency Power Supply)
• Up to 300% PV Oversizing
• Integrated Wi-Fi Monitoring
• Parallel Operation Capability
• Built-In Battery Heating System
• Integrated Fire Suppression
• IP66 Rated for Indoor & Outdoor Installation

Complete Energy Storage in One Unit

The EVO Series eliminates the need for separate inverter and battery installations, providing a clean, streamlined energy storage solution.

Benefits

• Faster installation
• Reduced wall space requirements
• Simplified commissioning
• Modern aesthetic design
• Reduced installation complexity

Advanced Hybrid Inverter Technology

The integrated 5kW hybrid inverter offers exceptional solar harvesting capabilities with three independent MPPT trackers.

Inverter Features

• 5kW Rated Output Power
• 3 MPPT Inputs
• 300% PV Oversizing Capability
• 80V Low Start-Up Voltage
• Integrated LCD Display
• Export Limitation Support
• Built-In Wi-Fi Monitoring
• Parallel Ready (Up To 3 Units)

The low start-up voltage allows solar generation to begin earlier in the day, helping maximise annual energy production.

Integrated 10.24kWh Battery Storage

The built-in lithium iron phosphate battery provides substantial energy storage capacity whilst maintaining exceptional safety and performance.

Battery Features

• 10.24kWh Storage Capacity
• LiFePO₄ (LFP) Technology
• 95% Depth of Discharge
• High Round-Trip Efficiency
• Integrated Battery Heating
• Built-In Fire Suppressant
• High Charge & Discharge Capability

The system can also be expanded up to 30.72kWh by installing additional EVO units.

Whole Home Backup Capability

The integrated Emergency Power Supply (EPS) functionality ensures essential household circuits remain powered during grid outages.

EPS Benefits

• Backup power during power cuts
• 200% overload capability
• Increased energy security
• Automatic backup functionality
• Supports critical household loads

Smart Monitoring & Connectivity

Monitor and control your energy system remotely through the Fox ESS monitoring platform.

Connectivity Features

• Integrated Wi-Fi
• Remote Monitoring
• System Performance Tracking
• Battery Monitoring
• Energy Usage Analytics
• Firmware Updates

No additional Wi-Fi dongle is required.

Built for Outdoor Installation

The EVO Series features a robust IP66-rated enclosure, making it suitable for both indoor and outdoor installations.

Benefits

• Weather-resistant design
• Suitable for external installations
• Reduced installation restrictions
• Long-term reliability
• Ideal for UK climates

Technical Specifications

Inverter

• Rated Output Power: 5kW
• MPPT Quantity: 3
• Start-Up Voltage: 80V
• PV Oversizing Capability: 300%
• Parallel Operation: Up to 3 Units
• Export Limitation: Supported
• Connectivity: Integrated Wi-Fi

Battery

• Battery Capacity: 10.24kWh
• Battery Chemistry: LiFePO₄ (LFP)
• Depth of Discharge: 95%
• Integrated Heating: Yes
• Integrated Fire Suppressant: Yes
• Expandable Capacity: Up to 30.72kWh

General

• Protection Rating: IP66
• Installation: Indoor or Outdoor
• Cooling: Natural Convection

Hybrid & AC-Coupled Operation

The EVO Series offers exceptional flexibility and can operate as:

• Hybrid Solar & Battery System
• AC-Coupled Battery Storage System
• Solar Self-Consumption System
• Backup Power Solution
• Smart Tariff Optimisation System

Perfect For

• Residential Solar Installations
• New Build Homes
• Battery Storage Projects
• Energy Bill Reduction
• Backup Power Applications
• Smart Energy Tariffs
• Future-Proof Energy Systems

Why Choose the Fox ESS EVO10-5H?

The Fox ESS EVO10-5H combines inverter, battery, backup power, monitoring, heating, and fire protection into one elegant solution. With advanced solar harvesting, industry-leading scalability, and exceptional installation flexibility, it represents one of the most comprehensive residential energy storage systems available today.

Why Buy From Solar Renewable Hub?

✔ Nationwide Delivery
✔ Dedicated Technical Support
✔ Trade & Credit Accounts Available
✔ Renewable Energy Specialists
✔ Installer Design & Project Support

Product Code: EVO10-5H

Downloads

Fox ESS EVO Series Data Sheet
