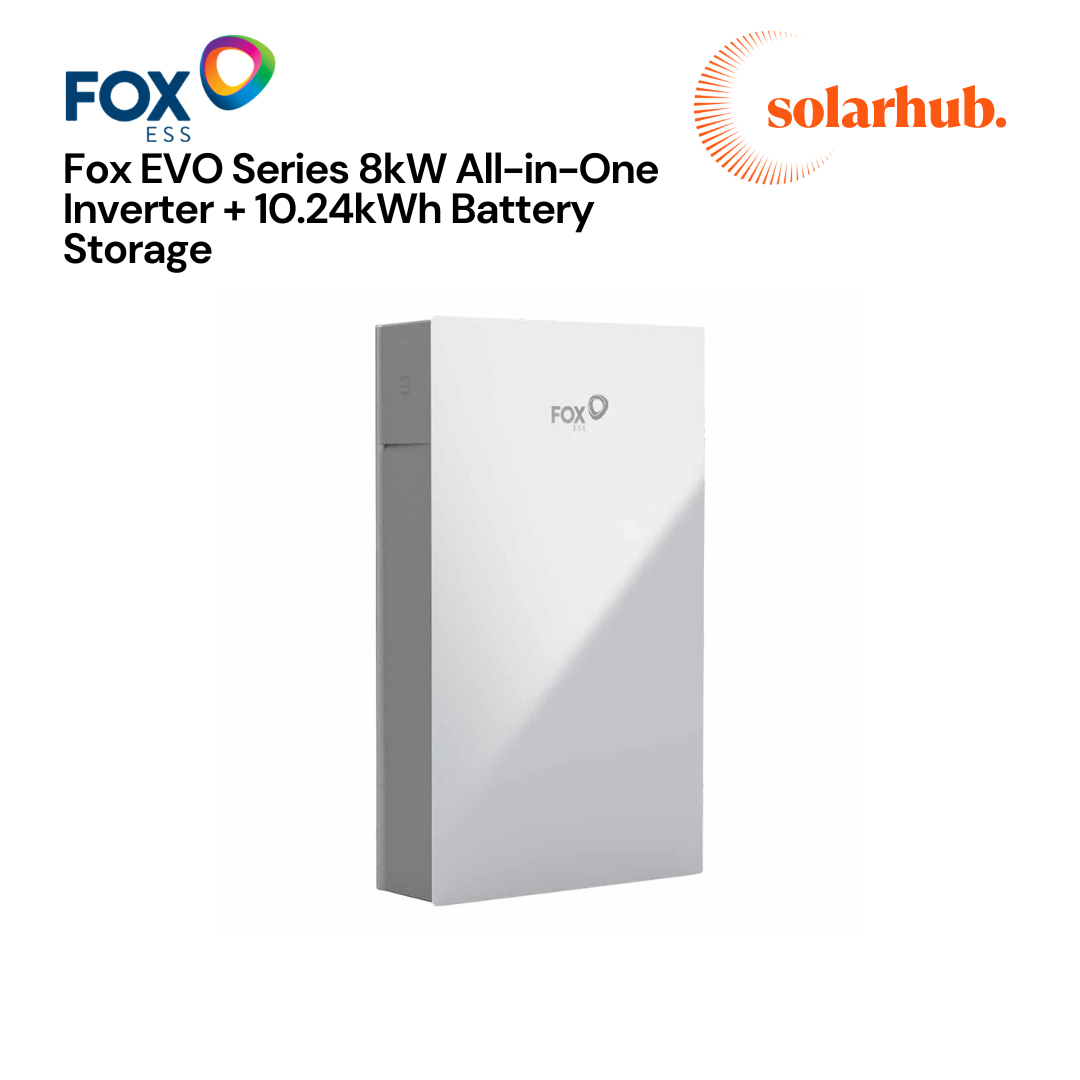

Fox ESS EVO10-8H 8kW Hybrid Inverter & 10.24kWh Battery Storage System

Powerful All-in-One Solar & Battery Storage Solution

The Fox ESS EVO10-8H combines a powerful 8kW hybrid inverter with a 10.24kWh lithium iron phosphate (LiFePO₄) battery in a single integrated unit, providing a premium energy storage solution for larger residential properties and high-consumption households.

Designed for both indoor and outdoor installations, the EVO Series delivers intelligent energy management, advanced solar harvesting, integrated backup power, and future scalability within one sleek and compact system.

Whether you're looking to maximise solar self-consumption, reduce energy costs, optimise smart tariffs, or provide backup power during outages, the EVO10-8H delivers exceptional performance and flexibility.

Available from Solar Renewable Hub with nationwide delivery and dedicated technical support.

Key Features

• Integrated 8kW Hybrid Inverter
• Integrated 10.24kWh LiFePO₄ Battery
• All-in-One Energy Storage System
• 3 Independent MPPTs
• Built-In EPS (Emergency Power Supply)
• 300% PV Oversizing Capability
• Integrated Wi-Fi Monitoring
• Parallel Operation Capability
• Integrated Battery Heating
• Built-In Fire Suppression System
• IP66 Rated for Indoor & Outdoor Installation

Complete Energy Storage in One Unit

The EVO Series simplifies installation by combining both the inverter and battery into a single integrated solution.

Benefits

• Faster installation
• Reduced installation costs
• Minimal wall space requirements
• Clean and modern appearance
• Simplified commissioning and maintenance

Advanced 8kW Hybrid Inverter

Designed for larger solar installations, the integrated 8kW hybrid inverter maximises generation and energy management performance.

Inverter Features

• 8kW Rated Output Power
• Triple MPPT Design
• 300% PV Oversizing Capability
• 80V Start-Up Voltage
• Built-In LCD Display with Magnetic Cover
• Export Limitation Functionality
• Integrated Wi-Fi Connectivity
• Parallel Operation Support (Up to 3 Units)

The three MPPT trackers allow greater flexibility across multiple roof orientations, helping maximise solar generation throughout the day.

Integrated 10.24kWh Battery Storage

The built-in LiFePO₄ battery provides safe, reliable, and high-performance energy storage.

Battery Features

• 10.24kWh Storage Capacity
• Premium LiFePO₄ Battery Technology
• 95% Depth of Discharge
• High Charge & Discharge Capability
• Integrated Battery Warm-Up Function
• Built-In Fire Suppressant
• High Round-Trip Efficiency

The system can be expanded up to 30.72kWh by operating multiple EVO units in parallel.

Emergency Power Supply (EPS)

The integrated EPS function provides backup power during grid outages, helping maintain power to essential household loads.

EPS Benefits

• Backup power during outages
• 200% overload capability
• Increased energy security
• Supports critical circuits
• Reliable operation during grid interruptions

Smart Monitoring & Connectivity

Monitor and manage your energy system remotely through the Fox ESS monitoring platform.

Connectivity Features

• Integrated Wi-Fi
• Remote Monitoring
• Live Generation Data
• Battery Performance Monitoring
• Energy Usage Analytics
• Firmware Updates

No additional Wi-Fi dongle is required.

Built for Outdoor Installation

The EVO Series is engineered for long-term durability with a robust IP66-rated enclosure suitable for both indoor and outdoor environments.

Benefits

• Weather-resistant construction
• Suitable for external installation
• Reduced installation restrictions
• Long-term reliability
• Ideal for UK climates

Technical Specifications

Inverter

• Rated Output Power: 8kW
• MPPT Quantity: 3
• Start-Up Voltage: 80V
• PV Oversizing Capability: 300%
• Parallel Operation: Up to 3 Units
• Export Limitation: Supported
• Connectivity: Integrated Wi-Fi

Battery

• Battery Capacity: 10.24kWh
• Battery Chemistry: LiFePO₄ (LFP)
• Depth of Discharge: 95%
• Integrated Heating: Yes
• Integrated Fire Suppressant: Yes
• Expandable Capacity: Up to 30.72kWh

General

• Protection Rating: IP66
• Installation: Indoor or Outdoor
• Cooling: Natural Convection

Hybrid & AC-Coupled Operation

The EVO10-8H offers installation flexibility and can operate as:

• Hybrid Solar & Battery Storage System
• AC-Coupled Battery Storage Solution
• Solar Self-Consumption System
• Backup Power System
• Smart Tariff Optimisation System

Perfect For

• Large Residential Solar Installations
• High Energy Demand Homes
• Solar & Battery Storage Systems
• Smart Tariff Users
• Backup Power Applications
• Energy Bill Reduction
• Future-Proof Energy Systems

Why Choose the Fox ESS EVO10-8H?

The Fox ESS EVO10-8H combines a powerful 8kW hybrid inverter, premium 10.24kWh battery storage, integrated backup power, and advanced monitoring technology into a single elegant package. Designed for homeowners seeking maximum performance, scalability, and energy independence, it delivers one of the most comprehensive all-in-one storage solutions available.

Why Buy From Solar Renewable Hub?

✔ Nationwide Delivery
✔ Dedicated Technical Support
✔ Trade & Credit Accounts Available
✔ Renewable Energy Specialists
✔ Installer Design & Project Support

Product Code: EVO10-8H

Downloads

Fox ESS EVO Series Data Sheet
