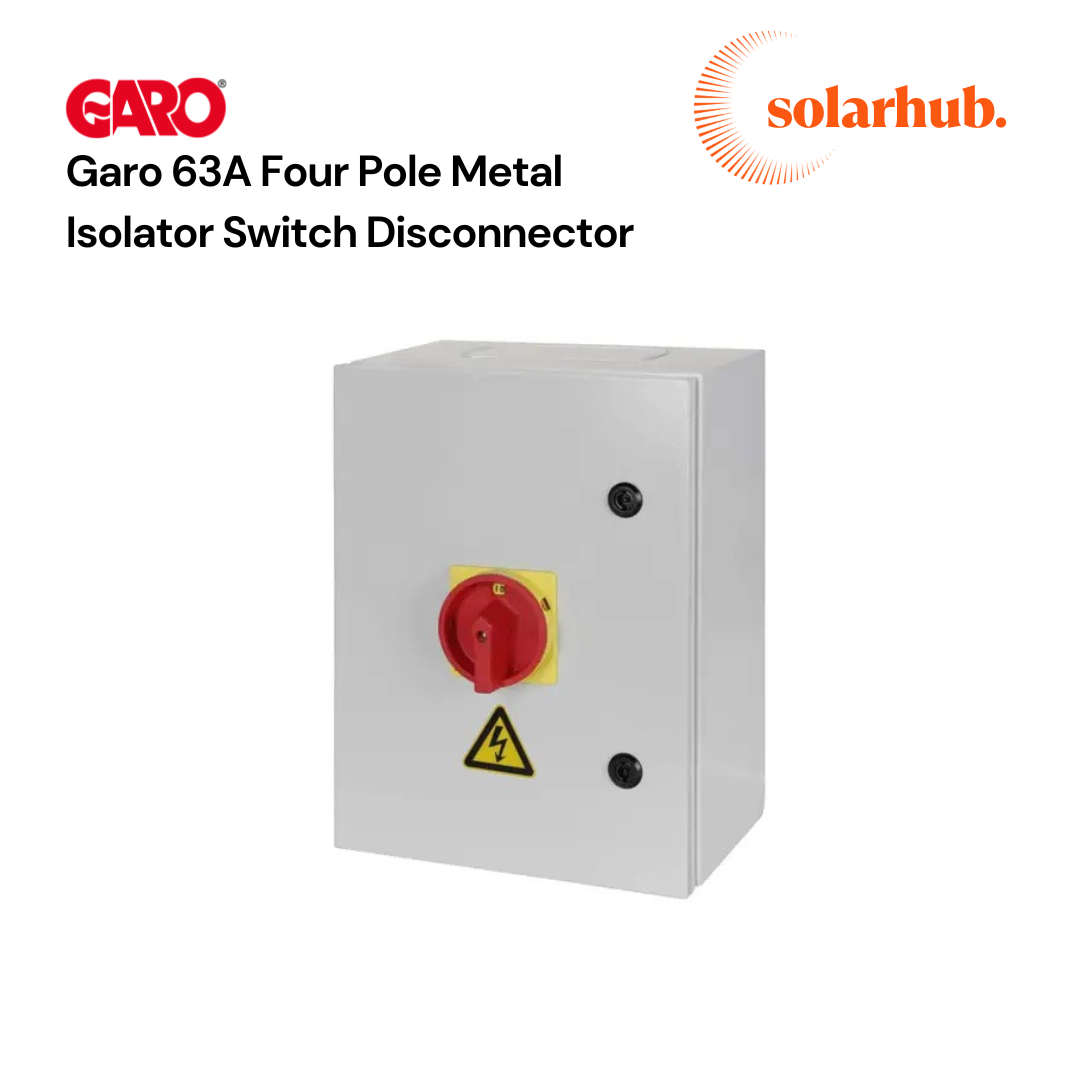

Garo 63A Four Pole Metal Isolator Switch Disconnector
£110.00
GARO 63A 4 Pole Steel Isolator Switch IP65 (GSI463)
Heavy-Duty Industrial & Commercial Isolator
The GARO GSI463 63A 4 Pole Isolator is a robust, lockable switch disconnector designed for industrial and commercial electrical installations. Manufactured with a heavy-duty steel enclosure and finished with a durable epoxy powder coating, it provides reliable isolation and long-lasting protection in demanding environments.
With an IP65-rated enclosure, the GSI463 is suitable for both indoor and outdoor installations, offering excellent protection against dust and water ingress. The interlocking handle and padlockable OFF position provide additional safety during maintenance and servicing.
Key Features
- 63A 4 Pole Isolator Switch
- Heavy-Duty Steel Enclosure
- IP65 Rated for Indoor & Outdoor Use
- Interlocking Operating Handle
- Padlockable in OFF Position for Safe Isolation
- Durable Epoxy Powder-Coated Finish
- Surface Mounted Design
- Top & Bottom Gland Plates
- Manufactured to BS EN 60947-1 & BS EN 60947-3
Technical Specifications
| Specification | Details |
|---|---|
| Current Rating | 63A |
| Voltage Rating | 400V |
| Number of Poles | 4 Pole |
| IP Rating | IP65 |
| Material | 2.0mm Cold Rolled Steel |
| Mounting | Surface Mounted |
| Terminal Capacity | 16mm² |
| Dimensions | 400 × 300 × 200mm |
| Weight | 5kg |
| Lockable | Yes |
| Warranty | 2 Years |
Applications
The GARO GSI463 is ideal for:
- Commercial Solar PV Installations
- Industrial Electrical Systems
- Three-Phase Distribution
- Plant & Machinery Isolation
- Energy Storage Systems
- General Electrical Isolation Applications
Why Buy From Solar Hub?
- UK Stock Available
- Nationwide Next-Day Delivery
- Trade & Credit Accounts
- Free Technical Support & System Design
- Expert Customer Service
The GARO GSI463 63A 4 Pole Isolator delivers safe, reliable isolation for demanding commercial and industrial installations, available now from Solar Hub.
