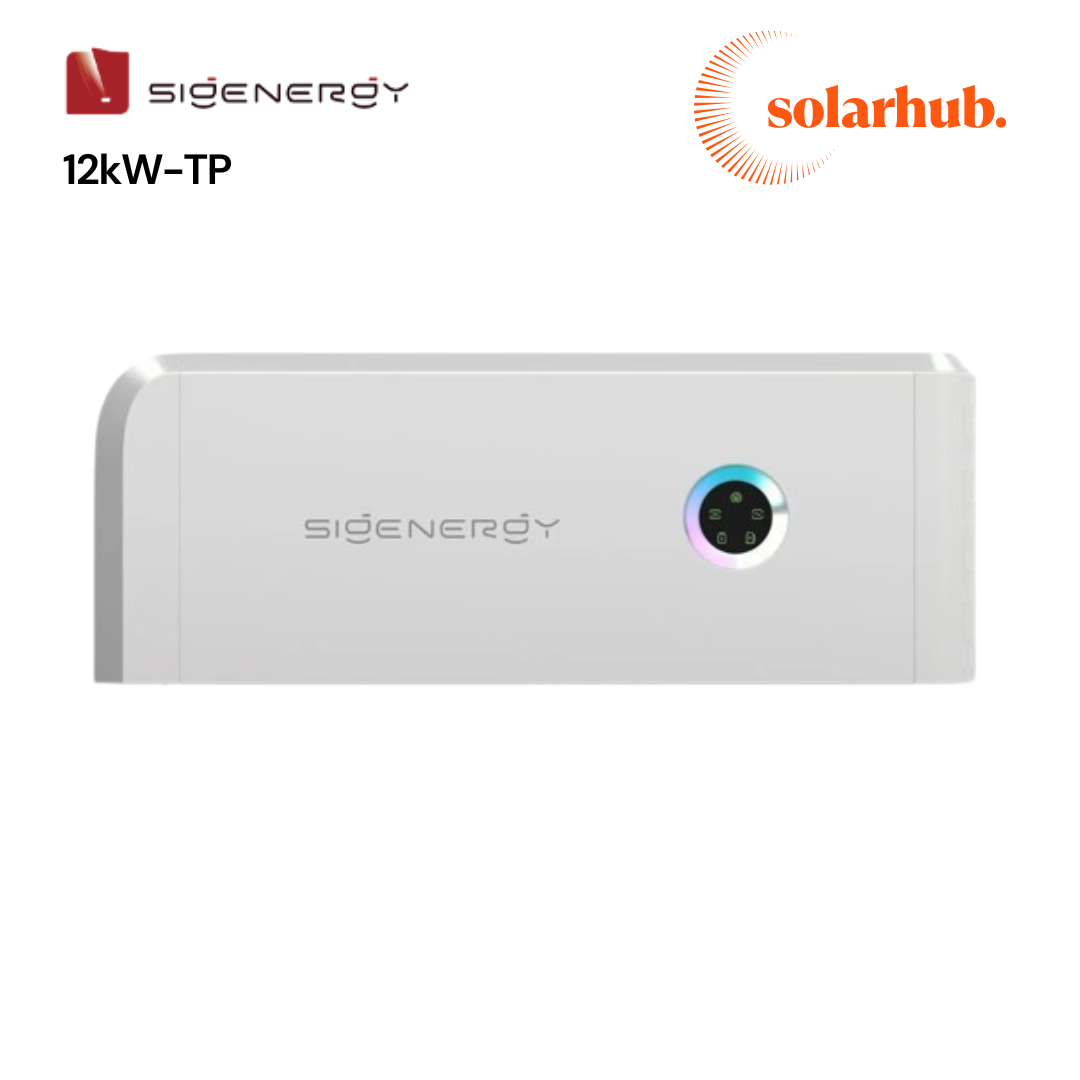

Sigenergy Sigenstor Energy Controller 12.0 kW Three Phase

The Sigen Energy Controller EC 12.0 TP is a powerful 12.0kW, 3-phase hybrid inverter designed to enhance the SigenStor AI-driven 5-in-1 Energy Storage System. This controller ensures precise energy management and supports efficiency, flexibility, and energy independence across various use cases.

Battery Connection:

• Compatible with SigenStor BAT 5.0kWh and 8.0kWh models
• Supports 1 to 6 batteries per inverter, up to a maximum of 48kWh per unit
• Flexible battery configurations
• Systems can scale to 10 inverters, allowing up to 480kWh total storage

As a critical component of the SigenStor 5-in-1 Energy Storage System, the EC 12.0 TP integrates seamlessly with the PV inverter, Battery Power Conversion System (PCS), EV DC Charger, Battery Pack, and Energy Management System (EMS). It is suitable for a range of applications, including PV + ESS, battery-ready installations, retrofits, and backup systems.

The SigenStor ESS is noted for its modern design, featuring a sleek front "eagle eye" display and side ambient lighting that blends with any setting, ensuring optimal energy usage and autonomy.

Key Features:

• Three MPP trackers for enhanced performance
• Integrated EMS for comprehensive energy control
• Multi-source black start capability
• DC ground-fault protection
• Maximum short-circuit current per MPPT: 20A
• High DC/AC ratio up to 1.6
• IP66-rated for outdoor/indoor durability
• Smart air cooling system for temperature management
• Multiple communication options: WLAN, Ethernet, RS485, Sigen CommMod (4G/3G/2G)
• 10-year warranty for reliability
• G98 and G100 certification

Note: The SigenStor EC requires at least one SigenStor BAT5 or BAT8 battery for operation. Components of the SigenStor ESS work together, except for the optional EV DC charger, which can function independently.
