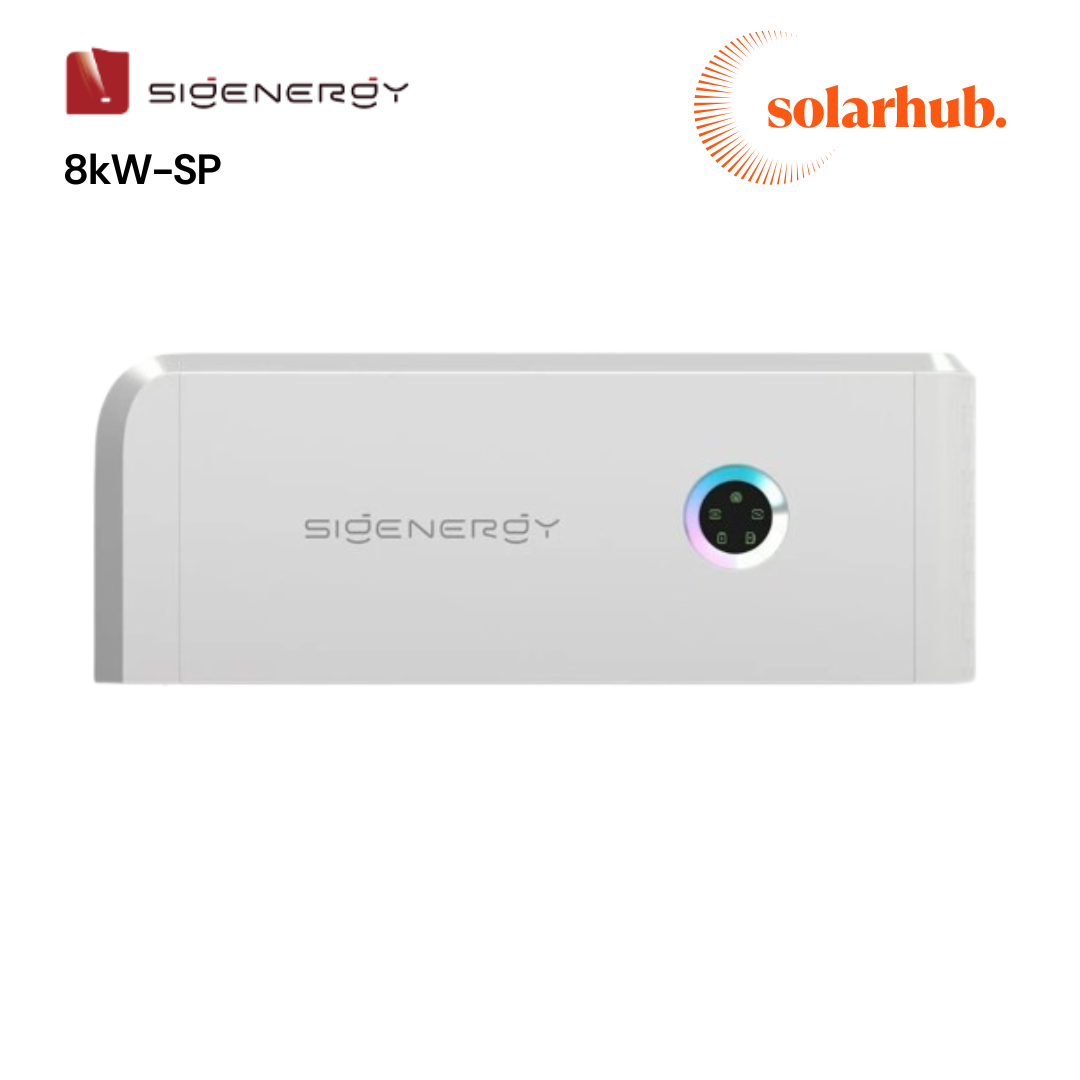

Sigenergy Sigenstor Energy Controller 8.0 kW Single Phase

The Sigen Energy Controller EC 8.0 SP is a powerful 8.0kW, single-phase hybrid inverter that enables seamless battery integration. It is fully compatible with SigenStor BAT 5.0kWh and 8.0kWh battery models, supporting configurations ranging from one to six batteries per unit for a total storage capacity of up to 48kWh per inverter. The flexibility to interchange batteries allows for tailored energy solutions.

As part of the SigenStor AI-optimized 5-in-1 Energy Storage System, the EC 8.0 SP merges PV inverter, Battery Power Conversion System (PCS), EV DC charging capability, Battery Pack, and Energy Management System (EMS). This integration supports a range of applications, including PV + ESS, battery-ready systems, retrofitting, and backup power.

The SigenStor ESS boasts a distinctive, modern design, highlighted by an "eagle eye" front display and side ambient lighting, making it a visually appealing addition to any environment. This system offers energy independence with optimal efficiency, flexibility, and robust performance.

Key Features:

• Dual MPP trackers for improved system efficiency
• Integrated Energy Management System (EMS) for enhanced control
• Multi-source black start capability for reliable power restoration
• DC ground-fault protection for added safety
• Maximum short-circuit current per MPPT: 20A
• High DC/AC ratio up to 2.0 for enhanced performance
• IP66-rated enclosure for outdoor durability
• Natural cooling for effective thermal management
• Multiple communication options: WLAN, Ethernet, RS485, and Sigen CommMod (4G/3G/2G)
• 10-year warranty for long-term reliability
• Certified for G99 and G100 compliance
• Requires at least one SigenStor BAT5 or BAT8 for operation
• Components are interdependent, except for the optional EV DC charger

The Sigen Energy Controller EC 8.0 SP is designed to deliver maximum energy efficiency and adaptability for residential and commercial energy storage solutions.
