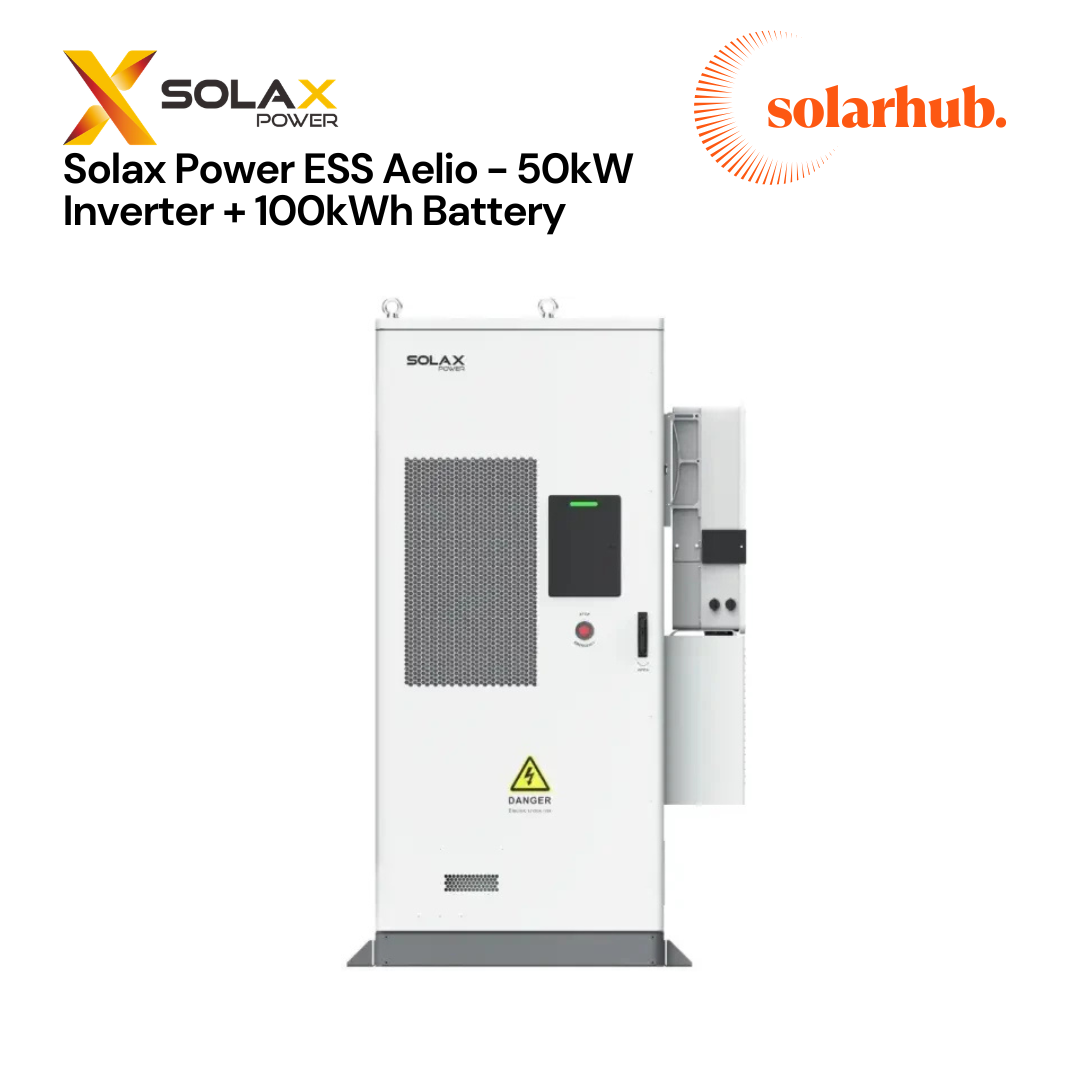

SolaX Aelio Series C&I Energy Storage Cabinet

The SolaX Aelio Series Energy Storage Cabinet is a highly integrated, all-in-one commercial and industrial (C&I) hybrid energy storage solution designed for advanced solar and battery applications.

Built for flexibility, reliability, and intelligent energy management, the Aelio Series combines high-performance LFP battery technology, advanced EMS controls, and integrated safety systems into one scalable energy storage platform.

Available through Solar Renewable Hub, the Aelio Series is ideal for commercial solar projects, peak shaving applications, backup power systems, EV infrastructure, and large-scale smart energy management.

Key Features

• All-in-one commercial hybrid energy storage cabinet
• Available in 100kWh and 200kWh configurations
• Expandable to multi-MWh systems
• Supports both on-grid and off-grid operation
• Intelligent EMS with real-time monitoring
• Integrated fire safety protection system
• Suitable for solar PV, battery storage, EV charging & generators
• Peak shaving & demand response functionality
• VPP ready and microgrid compatible
• Remote monitoring & cloud-based O&M support

Intelligent Energy Management

The Aelio Series is equipped with a self-developed Energy Management System (EMS) designed to optimise system performance and improve energy efficiency.

EMS Functions Include

• Real-time monitoring of battery cells, PCS & fire systems
• Intelligent charge and discharge management
• Autonomous scheduling based on local electricity pricing
• Historical data storage for up to 1 year
• Smart energy optimisation strategies
• Integrated management of PV, storage, EV charging & generators
• Remote diagnostics and system deployment

The advanced EMS platform helps maximise return on investment while reducing operational costs across commercial installations.

High-Performance LFP Battery Technology

The Aelio cabinet uses advanced Lithium Iron Phosphate (LFP) battery technology, providing excellent thermal stability, safety, and long-term cycle performance.

Battery Benefits

• High-density battery architecture
• 280Ah large-capacity cells
• Stable charging and discharging performance
• Reduced system costs
• Long operational lifespan
• Expandable to utility-scale systems

Built for Commercial & Industrial Applications

The SolaX Aelio Series is suitable for a wide range of C&I applications including:

• Peak shaving
• Demand response
• Backup power systems
• Solar + storage integration
• EV charging infrastructure
• Virtual power plant (VPP) participation
• Frequency regulation
• Microgrid applications
• Stable load consumption optimisation

Advanced Safety & Protection

Safety is central to the Aelio Series design, with multiple integrated protection systems helping minimise operational risk.

Protection Features

• Four-level fire safety protection
• Fire-resistant cabinet materials
• Overvoltage protection
• Overcurrent protection
• Overtemperature protection
• AFCI optional protection
• AC & DC SPD Type II protection
• Smart IV curve diagnostics
• Ground fault monitoring
• Rapid fault detection and response

Protection Ratings

• Inverter: IP66
• Cabinet: IP54

Backup & Off-Grid Performance

The Aelio Series delivers strong backup functionality for critical commercial loads.

Backup Features

• <10ms switch-over time
• Up to 150% EPS output for 10 seconds
• Supports unbalanced three-phase loads
• Reliable backup operation during outages
• Generator compatibility supported

Smart Solar Performance

Designed for modern high-power PV systems, the Aelio platform delivers excellent solar harvesting and charging efficiency.

Solar Features

• Maximum 200% PV oversized input
• Up to 40A input current per MPPT
• Supports high-power solar modules
• Global MPP scan technology
• Smart load management capability
• AI-ready forecasting functions*

Compatible with:

• Heat pumps
• EV chargers
• Smart loads
• Commercial energy management systems

Why Choose the Aelio Series?

• Fully integrated commercial ESS solution
• Intelligent EMS and smart energy controls
• Scalable from single cabinet to MWh systems
• Advanced safety and fire protection
• Designed for commercial solar and storage projects
• Remote monitoring and fleet management support
• VPP and microgrid ready

Downloads

Solax ESS Aelio Data Sheet
