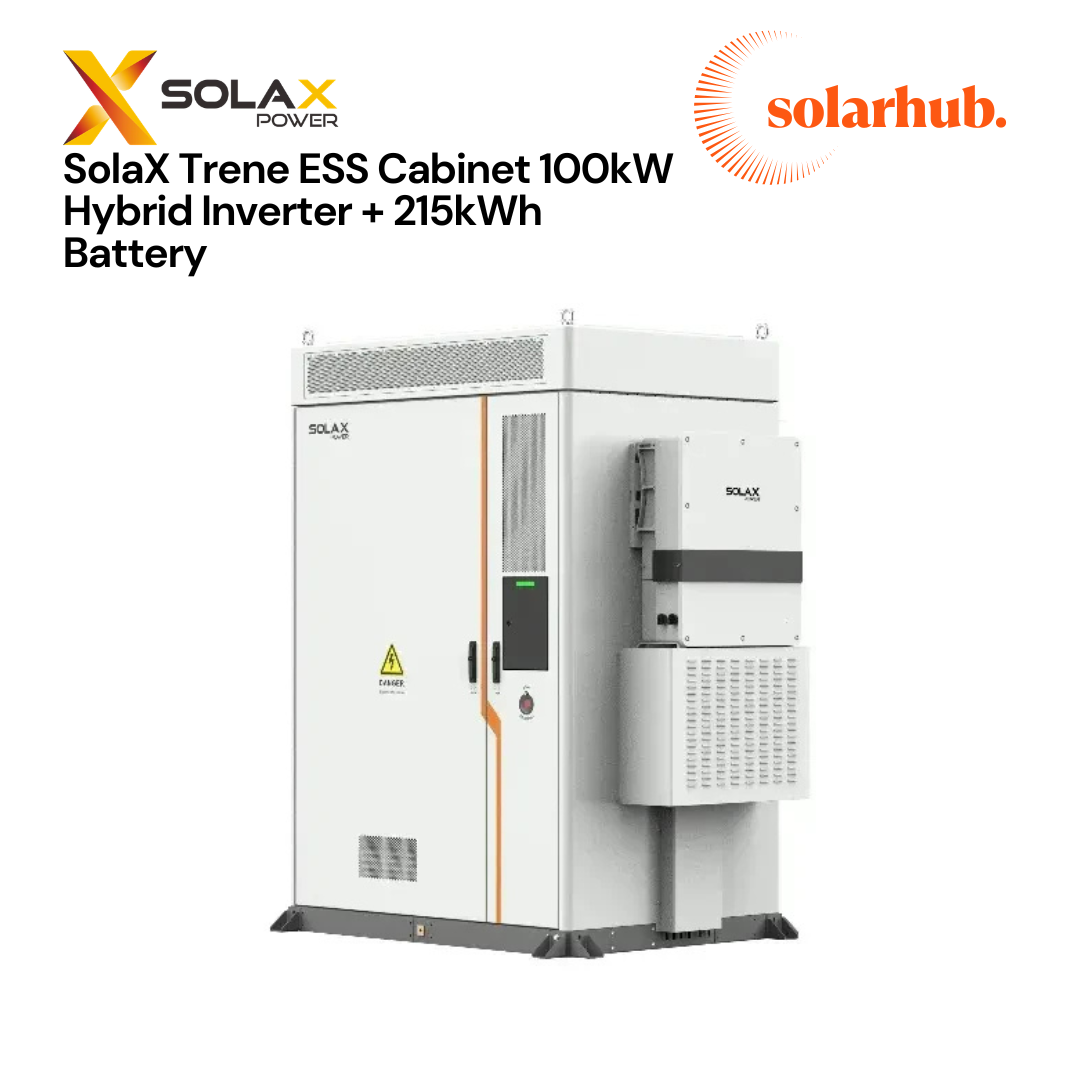

SolaX Trene ESS 100kW / 215kWh Commercial Energy Storage System

The SolaX Trene ESS 100kW / 215kWh is a highly integrated, all-in-one commercial and industrial energy storage solution designed to deliver intelligent energy management, advanced safety, and reliable large-scale backup power.

Combining a powerful 100kW hybrid inverter with a 215kWh Lithium Iron Phosphate (LFP) battery system, the Trene ESS is ideal for commercial solar, peak shaving, EV charging infrastructure, backup power, and energy optimisation projects.

Available through Solar Renewable Hub with nationwide delivery and dedicated commercial project support.

Key Features

• Integrated 100kW inverter & 215kWh battery system
• High-performance 280Ah LFP battery cells
• Intelligent Energy Management System (EMS)
• Real-time system monitoring & diagnostics
• Four-level fire protection system
• Supports on-grid & off-grid operation
• Smart air cooling system
• Parallel scalability up to 1MWh
• Smart IV curve scanning
• IP55 protection rating
• Long-life commercial battery platform

Intelligent Energy Management

The SolaX Trene ESS features an advanced integrated EMS designed to maximise energy efficiency and improve commercial energy performance.

EMS Features Include

• Real-time battery and PCS monitoring
• Intelligent charge and discharge scheduling
• PV and EV charging integration
• Autonomous scheduling based on local electricity pricing
• Remote diagnostics and monitoring
• Optimised energy usage and load balancing

The integrated EMS helps commercial users reduce operational costs, improve energy efficiency, and maximise ROI across solar and storage installations.

High-Performance Commercial Battery Storage

Built using advanced Lithium Iron Phosphate (LFP) technology, the Trene ESS delivers exceptional thermal stability, safety, and long-term performance.

Battery Benefits

• 215kWh usable storage capacity
• High-density 280Ah battery cells
• 90% depth of discharge
• Long operational lifespan exceeding 10 years
• Stable charge/discharge performance
• Reduced system operating costs

Commercial & Industrial Applications

The Trene ESS is designed for a wide range of commercial and industrial energy applications including:

• Peak shaving
• Demand response
• Solar + battery storage integration
• EV charging infrastructure
• Backup power systems
• Energy cost optimisation
• Microgrid projects
• Commercial load shifting
• Industrial energy resilience

Advanced Safety & Protection

Safety is central to the SolaX Trene ESS design, featuring multiple layers of integrated protection and fire suppression systems.

Protection Features

• Four-level fire protection system
• Aerosol fire suppression
• Optional Novec1230 / water fire protection
• Overvoltage protection
• Overcurrent protection
• Thermal protection
• Smart IV curve diagnostics
• Advanced battery monitoring systems

Scalable & Flexible Design

The modular design allows multiple systems to operate in parallel, providing flexibility for expanding commercial energy requirements.

Scalability Features

• Parallel connection of up to 5 units
• Expandable up to 1MWh capacity
• Supports both on-grid and off-grid systems
• Suitable for standalone or integrated ESS projects

Technical Specifications

Inverter AC Side

• Rated AC Power: 100kW
• Maximum AC Apparent Power: 110kVA
• Rated AC Current: 144.4A
• Nominal Grid Voltage: 400V
• Grid Frequency: 50 / 60Hz
• Maximum Efficiency: 98%
• THDi: <3%
• Adjustable Power Factor: 0.9 leading ~ 0.9 lagging

Battery Specifications

• Battery Type: LFP 280Ah
• Battery Capacity: 215kWh
• Rated Battery Voltage: 768V
• Battery Voltage Range: 600V – 876V
• Rated Charge/Discharge Current: 140A
• Depth of Discharge: 90%

General Specifications

• Dimensions: 1680 × 2420 × 1200 mm
• Weight: 2800kg
• Cooling Method: Smart air cooling
• Protection Rating: IP55
• Operating Temperature: −30°C to +55°C
• Humidity: 0–95% non-condensing
• Altitude: ≤3000m
• Topology: Transformerless

Certifications

The SolaX Trene ESS complies with major international commercial ESS standards including:

• IEC62619
• IEC63056:2000
• IEC61000
• IEC62477-1
• UN38.3
• GB/T36276
• GB/T34131

Why Choose the SolaX Trene ESS?

• Fully integrated commercial ESS solution
• Intelligent EMS and smart energy optimisation
• Large-scale commercial battery storage
• Advanced fire protection and safety systems
• Scalable for growing commercial energy demand
• Ideal for solar, EV charging & backup applications
• Reliable long-term commercial performance

Perfect for:

• Commercial buildings
• Industrial facilities
• EV charging hubs
• Solar farms
• Agricultural sites
• Energy resilience projects
• Smart grid and microgrid applications

Downloads

Solax ESS Trene Data Sheet
