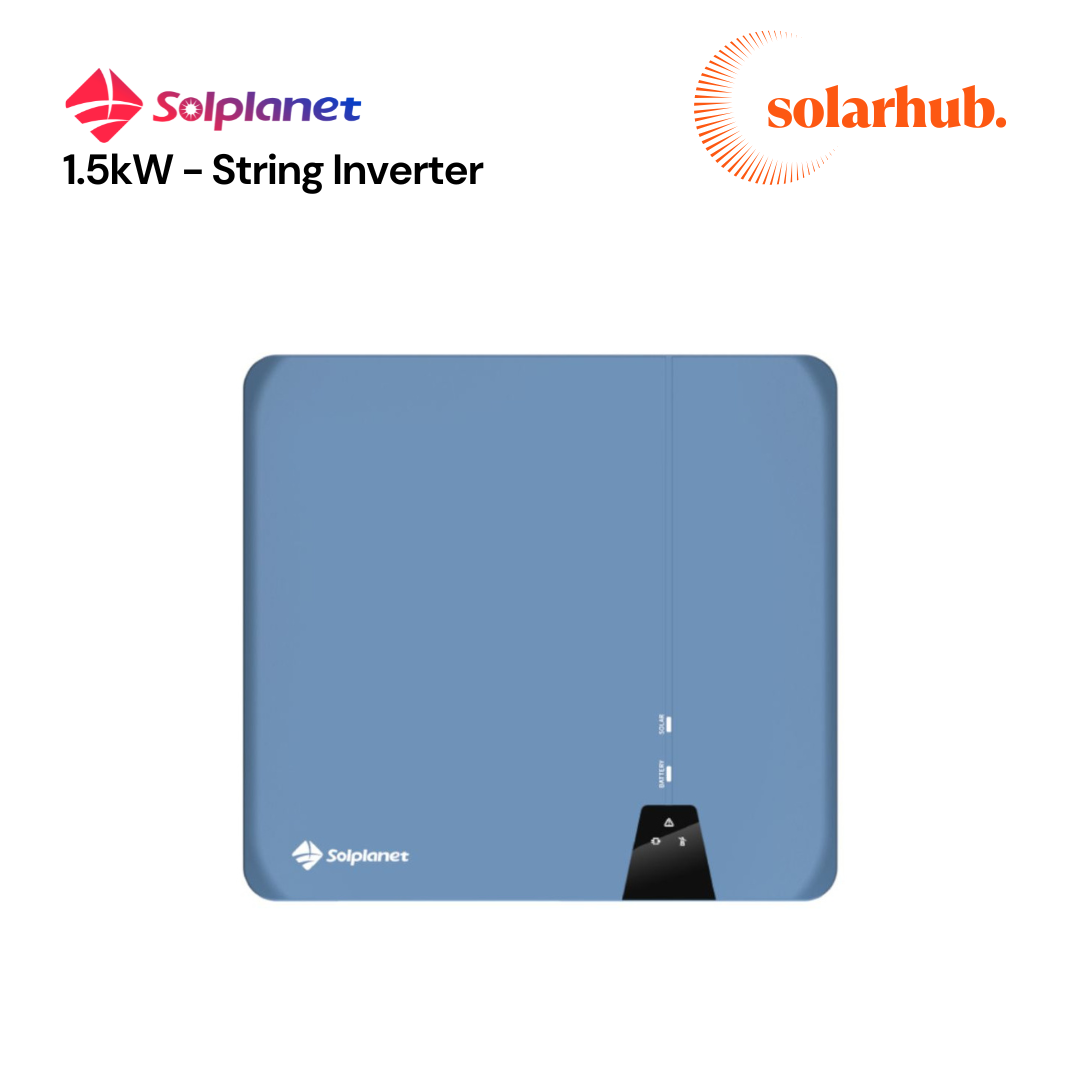

Solplanet 1.5kW, 1-PH String Inverter, WiFi-Stick, With DC ( 1 MPPT)
Solplanet 1.5kW, 1-PH String Inverter, WiFi-Stick, With DC ( 1 MPPT)
Couldn't load pickup availability
The Solplanet 1.5kW String Inverter is a compact and efficient solution designed for small residential solar systems. Featuring a single MPPT for optimised energy harvest, this inverter is ideal for simple rooftop installations. With its IP66 weatherproof rating, lightweight construction, and intuitive app-based commissioning, this inverter is built for durability and ease of use.
Solplanet’s reputation for reliability, safety, and smart design makes this inverter an excellent choice for homeowners and installers looking for a cost-effective, high-performance solution.
Key Features
-
1 MPPT for Simple Systems – Ideal for single-string installations.
-
High Conversion Efficiency – Up to 97.3% European efficiency for maximum energy yield.
-
Compact & Lightweight – Easy to handle, mount, and install.
-
IP66 Protection – Built for outdoor and indoor use, dustproof and water-resistant.
-
Quick Commissioning – Plug-and-play setup via the Solplanet app.
-
Quiet Operation – Fanless design ensures silent performance.
-
Comprehensive Safety – Integrated DC switch, surge protection, and advanced safeguards.
-
Smart Monitoring – View performance data in real-time through Solplanet’s web or mobile platforms.
-
Wide MPPT Range – Provides reliable operation in varied light conditions.
-
10-Year Warranty – Long-term support and reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Solplanet ASW 1.5K-S-G2 |
| Rated AC Output Power | 1.5 kW |
| Phase | Single Phase |
| Maximum DC Input Voltage | 600 V |
| MPPT Voltage Range | 60 V – 500 V |
| Max Input Current | 14 A |
| No. of MPPTs | 1 |
| No. of Strings per MPPT | 1 |
| Max AC Output Current | 7.5 A |
| Max Efficiency | 97.8% |
| European Efficiency | 97.3% |
| Protection Rating | IP66 |
| Communication | Wi-Fi (stick included), RS485 |
| Dimensions (H x W x D) | 295 x 230 x 113 mm |
| Weight | 6.5 kg |
| Operating Temperature | -25°C to +60°C |
| Cooling | Natural Convection (Fanless) |
| Warranty | 10 Years |
