Sol Planet

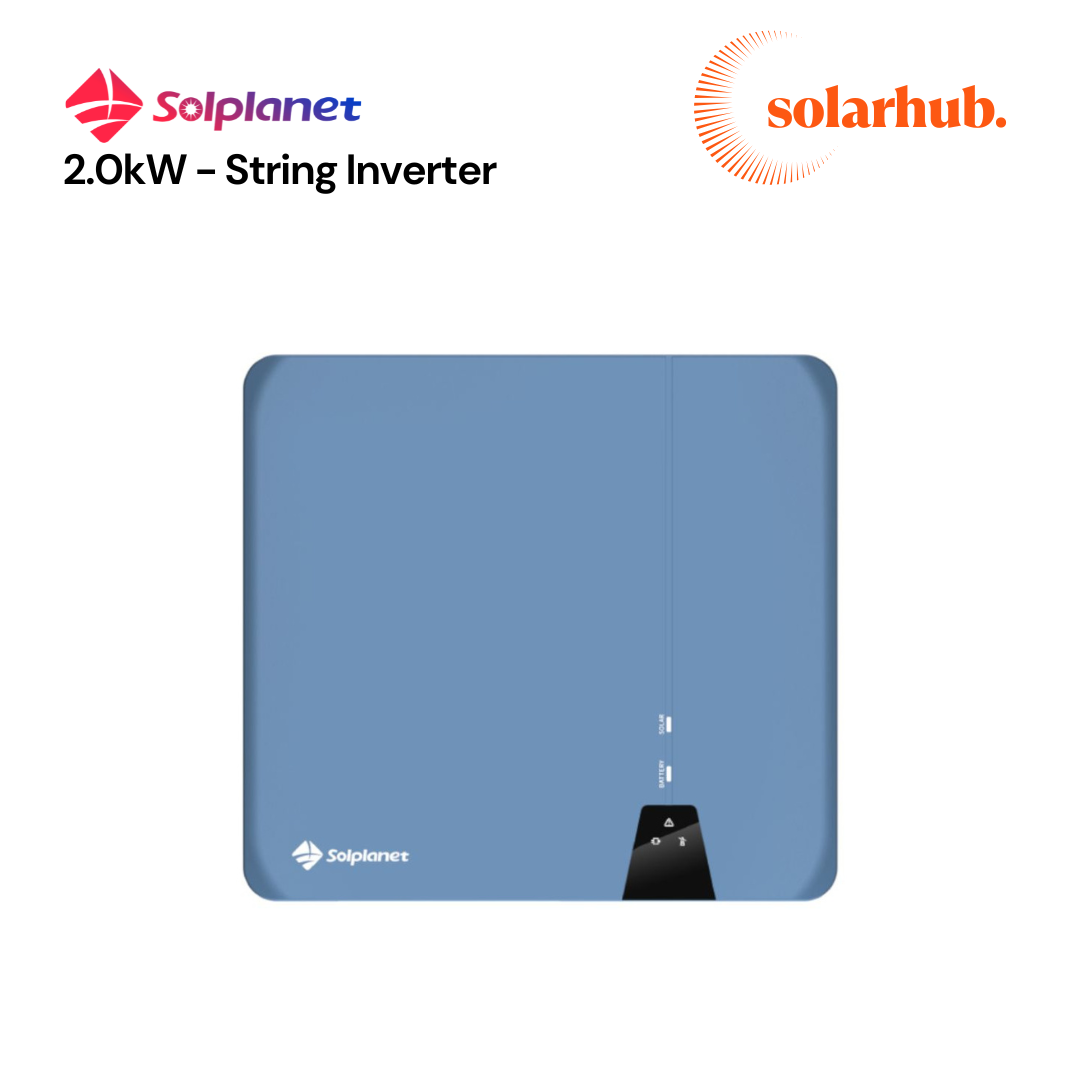

Solplanet 2.0kW, 1-PH String Inverter, WiFi-Stick, With DC ( 1 MPPT)

Solplanet 2.0kW, 1-PH String Inverter, WiFi-Stick, With DC ( 1 MPPT)

£190.00
£234.85 £190.00
Sale Sold out

The Solplanet 2kW String Inverter is designed for small residential solar systems, offering exceptional reliability, ease of installation, and energy efficiency. With 1 MPPT (Maximum Power Point Tracker), this inverter is the perfect solution for simple single-string setups, ensuring optimal power generation even in varied sunlight conditions.

Built with an IP66-rated weatherproof enclosure and lightweight design, it’s suitable for both indoor and outdoor installations. The inverter also features app-based monitoring and commissioning, allowing installers and homeowners to easily track system performance in real time.

Key Features

  • Optimised for Small Systems – Ideal for single-string residential solar arrays.

  • High Efficiency – Achieves up to 97.4% European efficiency.

  • Compact and Lightweight – Easy to install, move, and maintain.

  • Durable Design – IP66 protection ensures resistance to dust and water.

  • Fast Setup – Plug-and-play commissioning through the Solplanet app.

  • Fanless & Quiet – No moving parts for silent operation.

  • Built-In Safety – Integrated DC switch and advanced protection features.

  • Smart Monitoring – Real-time data via Wi-Fi or RS485 communication.

  • Wide MPPT Range – Reliable energy yield in diverse weather conditions.

  • 10-Year Warranty – Long-term confidence and peace of mind.

Technical Specifications

Specification Details
Model Solplanet ASW 2K-S-G2
Rated AC Output Power 2.0 kW
Phase Single Phase
Maximum DC Input Voltage 600 V
MPPT Voltage Range 60 V – 500 V
Max Input Current 14 A
No. of MPPTs 1
No. of Strings per MPPT 1
Max AC Output Current 9.5 A
Max Efficiency 97.8%
European Efficiency 97.4%
Protection Rating IP66
Communication Wi-Fi (stick included), RS485
Dimensions (H x W x D) 295 x 230 x 113 mm
Weight 6.5 kg
Operating Temperature -25°C to +60°C
Cooling Natural Convection (Fanless)
Warranty 10 Years



Downloads

Sol Planet 1.5kW 1-PH String Inverter Data Sheet



View full details
