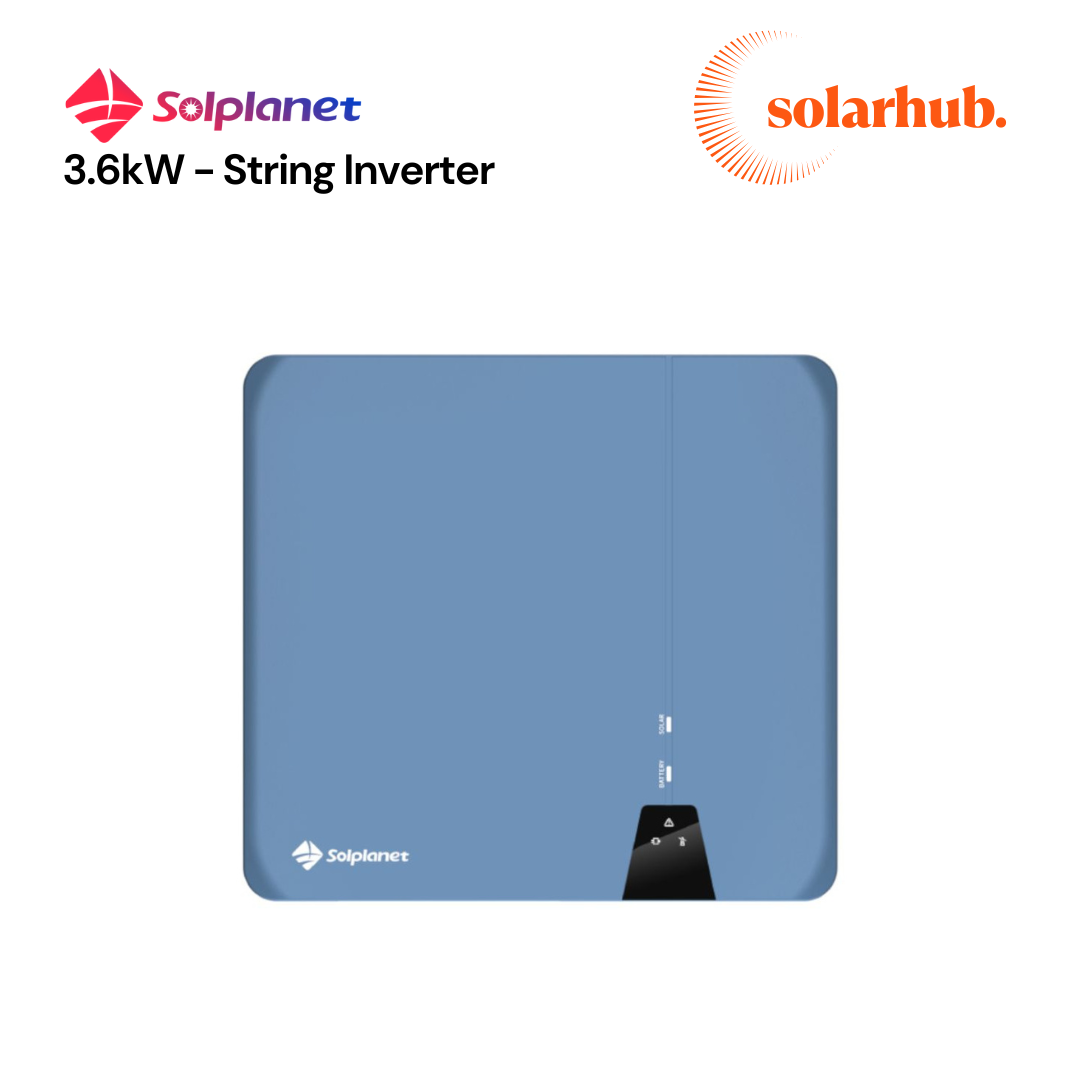

Solplanet 3.6kW, 1-PH String Inverter, WiFi-Stick, With DC ( 2 MPPT)

The ASW 3-6K S G2 Series single-phase string inverter series delivers the latest innovations for residential use.

The inverters include 2 independent MPP trackers and up to 20A rated input current per MPPT. They are perfectly compatible with high power, bifacial and larger size wafer-based solar panels. A wide MPPT range with 150% oversizing of the PV power array ensures high energy yield and flexibility in nearly every application.

Solplanet’s cloud-based app provides user-friendly, quick setup and easy commissioning features.

Key Features:

• Quick & easy-to-install with standard tools
• Compact wall mount design (bracket included)
• Max 20A input current, ideal for bifacial and large area PV modules
• Wide MPP voltage range 150V-1000V with low start up voltage – increased generation in low light conditions
• 150 % PV array oversizing for higher yields
• SUNCLIX DC Plug-in connectors
• Built-in Type II surge protection device both DC & AC side
• IP66 protection design for outdoor use
• Easy commissioning & monitoring with cloud-based Solplanet app
• Wi-Fi stick included
• 10-Year warranty

Downloads

Sol Planet 3.6kW 1-PH String Inverter Data Sheet
