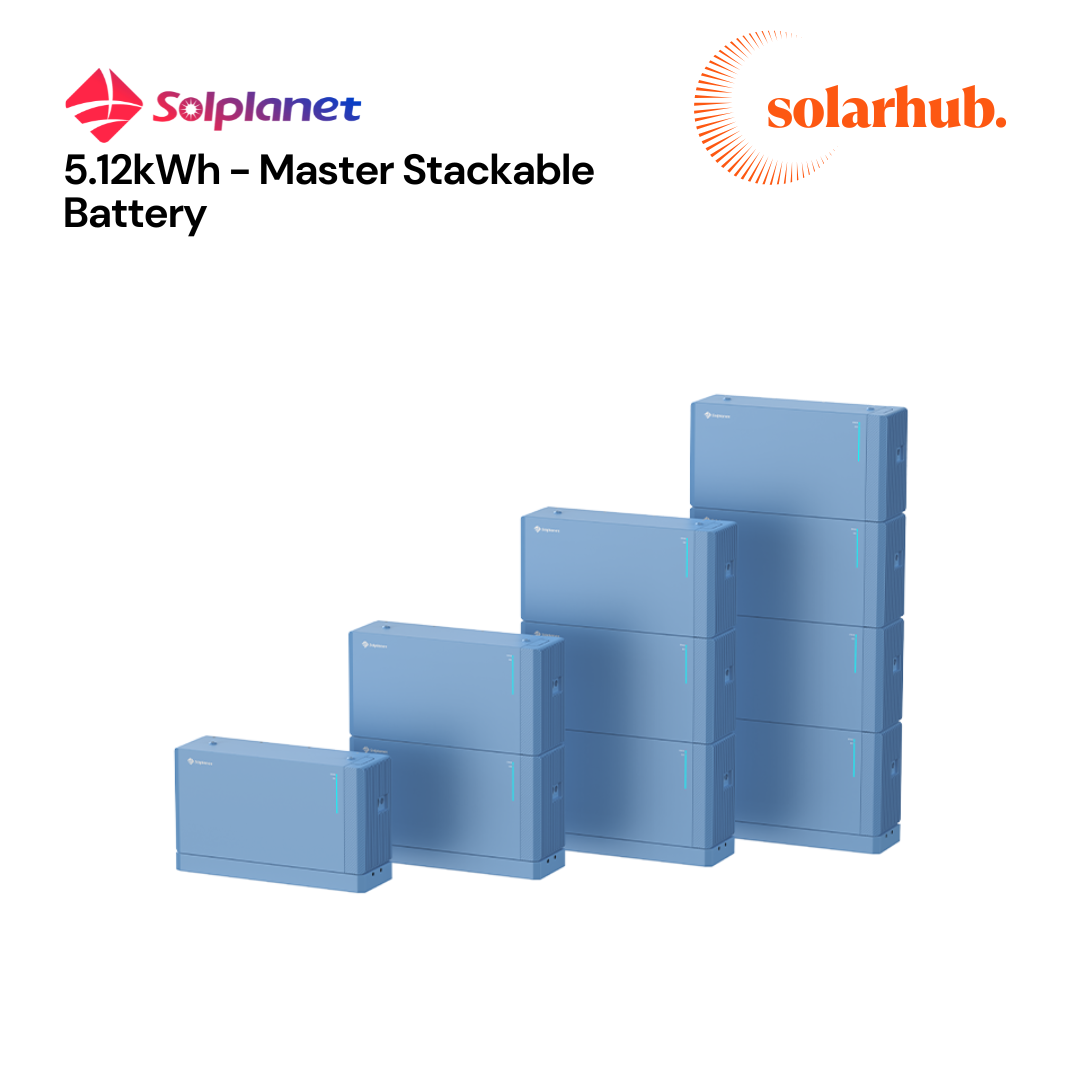

Solplanet 5.12kWh Stackable Master Battery with Ground Mount Kit (Ai-LB-G3)

Solplanet 5.12kWh Stackable Master Battery with Ground Mount Kit (Ai-LB-G3)

£800.00
£1,079.85 £800.00
Sale Sold out

Solplanet Ai-LB-G3 Stackable Battery – Master Module

Fully power your energy storage setup with the Solplanet Ai-LB-G3 Master Module. This sleek, powerful, and future-proof battery module performs flawlessly on its own or as the central hub in a scalable tower configuration.

Why Choose the Master Module – Ready for Expansion

  • Fast Stackability: Easily expand your system by adding up to three additional Ai-LB-G3 slave modules (totaling 4 modules, up to ~20.5 kWh) — all linked through the included lead with plug-and-play simplicity.

  • Built for Safety: Includes an integrated fire suppression system, MOSFET protection, and dual-fuse design — aligning with global safety standards.

  • Premium Weatherproof Design: IP66 rating means you can confidently install indoors or outdoors without extra weather-proofing.

  • Smart Energy Management: Features low standby consumption, ultra-precise State-of-Charge tracking, and a high 1C charge/discharge rate.

  • App-Controlled Monitoring: Keep tabs on performance through the Solplanet mobile app and LED status indicators.

Technical Specifications – Master Module

Feature Specification
Module Type Solplanet Ai-LB-G3 Master Module
Capacity 5.12 kWh usable (LiFePO₄)
Voltage Range 40 V – 58.4 V, Nominal 51.2 V
Max Discharge Power Up to 5.12 kW (1C rate)
Scalability Stack up to 4 modules per tower = ~20.48 kWh
Protection Integrated fire suppression, MOSFET, dual-fuse, advanced BMS
Enclosure Rating IP66 – suitable for outdoor installation
Weight Approximately 46 kg
Mounting Types Wall or floor mountable, modular stacking
Communication CAN bus (compatible with Solplanet inverters and monitoring systems)
Warranty 10 Years (standard for Solplanet batteries)

Perfect For:

  • Customers starting with a single battery and planning to expand later.

  • Space-conscious installations, thanks to vertical stacking.

  • Outdoor or indoor setups, with no need for separate weather protection.

  • Installers who value modular, safe, and smart-ready storage systems.

Downloads

Solplanet 5.12kWh Stackable Slave Battery (Ai-LB-G3) Data Sheet
