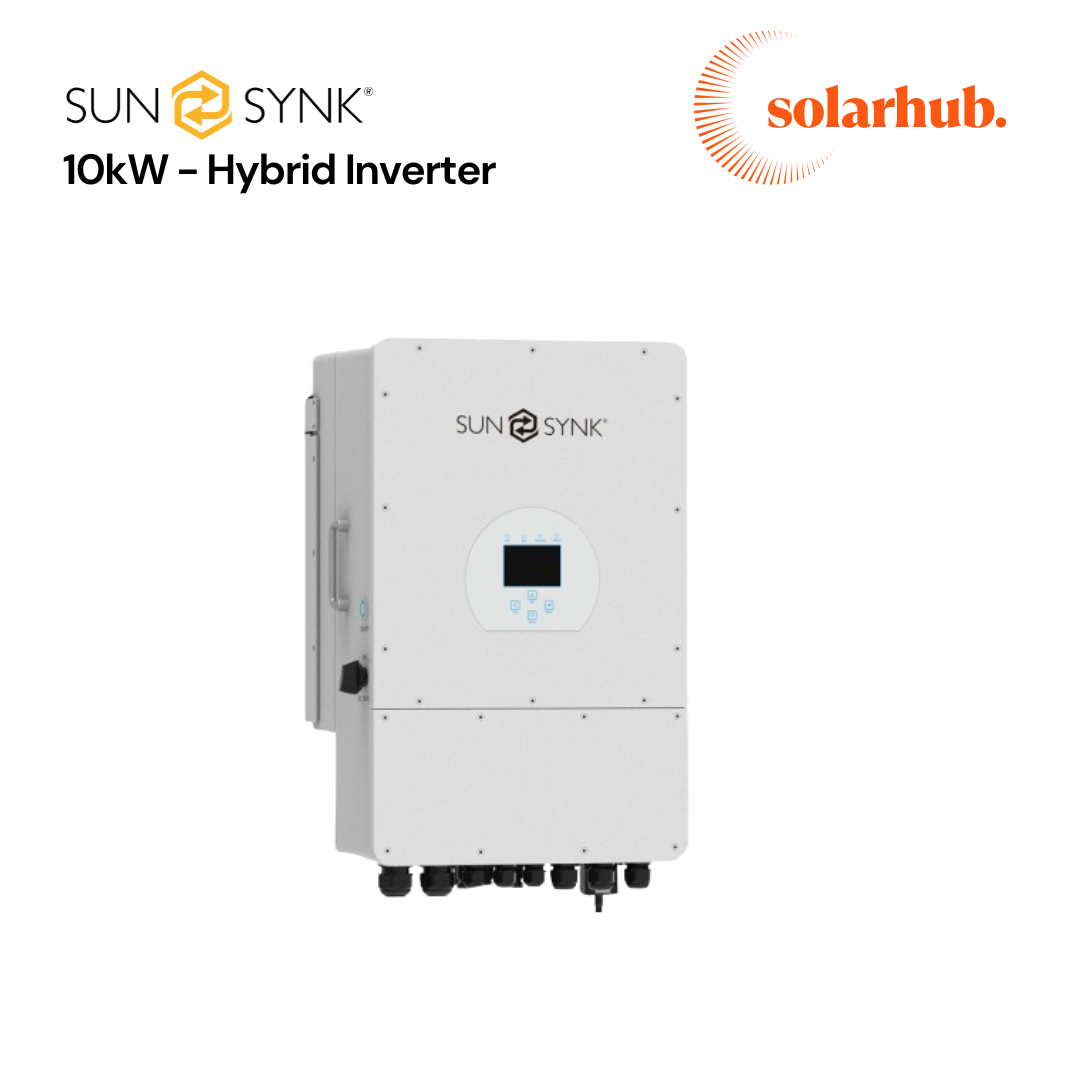

SunSynk 10kW Single Phase Hybrid Inverter (2 MPPT)

 The Sunsynk 10kW hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.

The Ecco Hybrid Inverter helps to reduce electricity costs by managing power from various sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine.

The hybrid inverter works alongside a battery to store excess energy and re-distribute it as when it is required. The Ecco has a multi-core processor design with advanced MPPT control and includes a parallel/multi invert function for on or off-grid use.

Features

• Dual MPPT design
• Compatible with Lithium-ion batteries and Lead Acid batteries
• Up to 50kWh battery pack
• IP65 rated
• Anti-islanding protection
• Fully programmable power export
• Automatic switching from Grid-Tied to Off-Grid mode
• Up to 16 units with the same firmware can be paralleled
• Warranty: 5 years standard

Specs

• Weight: 42kg
• Max. Charge Current: 220A
• Max Discharge Current: 220A
• Max. PV Input Power 13,000W
• No of MPPT / Strings Per MPPT: 3 / 2+2+2
• Rated AC Input/Output Active Power: 10,000 W
• Maximum Efficiency: 97.60%
• Max. Discharge Current 220A

Downloads

Sunsynk 10kW Hybrid Inverter Data Sheet
