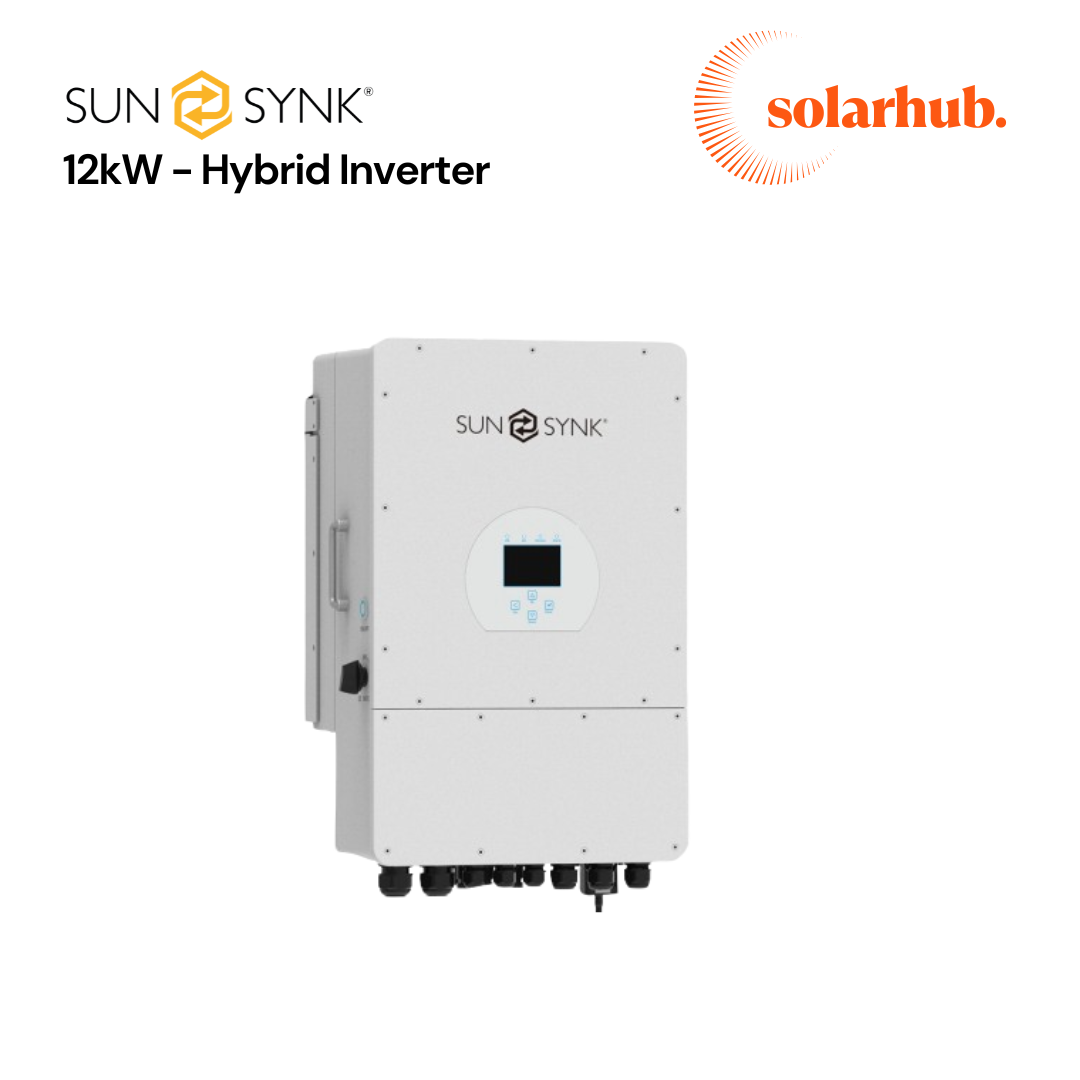

SunSynk 12kW Single Phase Hybrid Inverter (2 MPPT)

The Sunsynk 12kW hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.

Features

Max. PV Input Power: 18000W
Max. PV Input Voltage: 500V
MPPT Voltage Range: 150V~425V
Start-up Voltage: 125V
Rated PV Input Voltage: 370V
Max. Operating PV Input Current: 26A+26A+26A
Max. PV Isc: 44A+44A+44A
No. of MPPT / Strings Per MPPT: 3 / 2+2+2

Rated AC Input/Output Active Power: 12000W
Communication with BMS: RS485; CANNet Weight: 36 kg
Gross Weight: 42 kg

Size: 420W×670H×233D mm (Excluding connectors and brackets)
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 Year

Downloads

Sunsynk 12kW Hybrid Inverter Data Sheet
