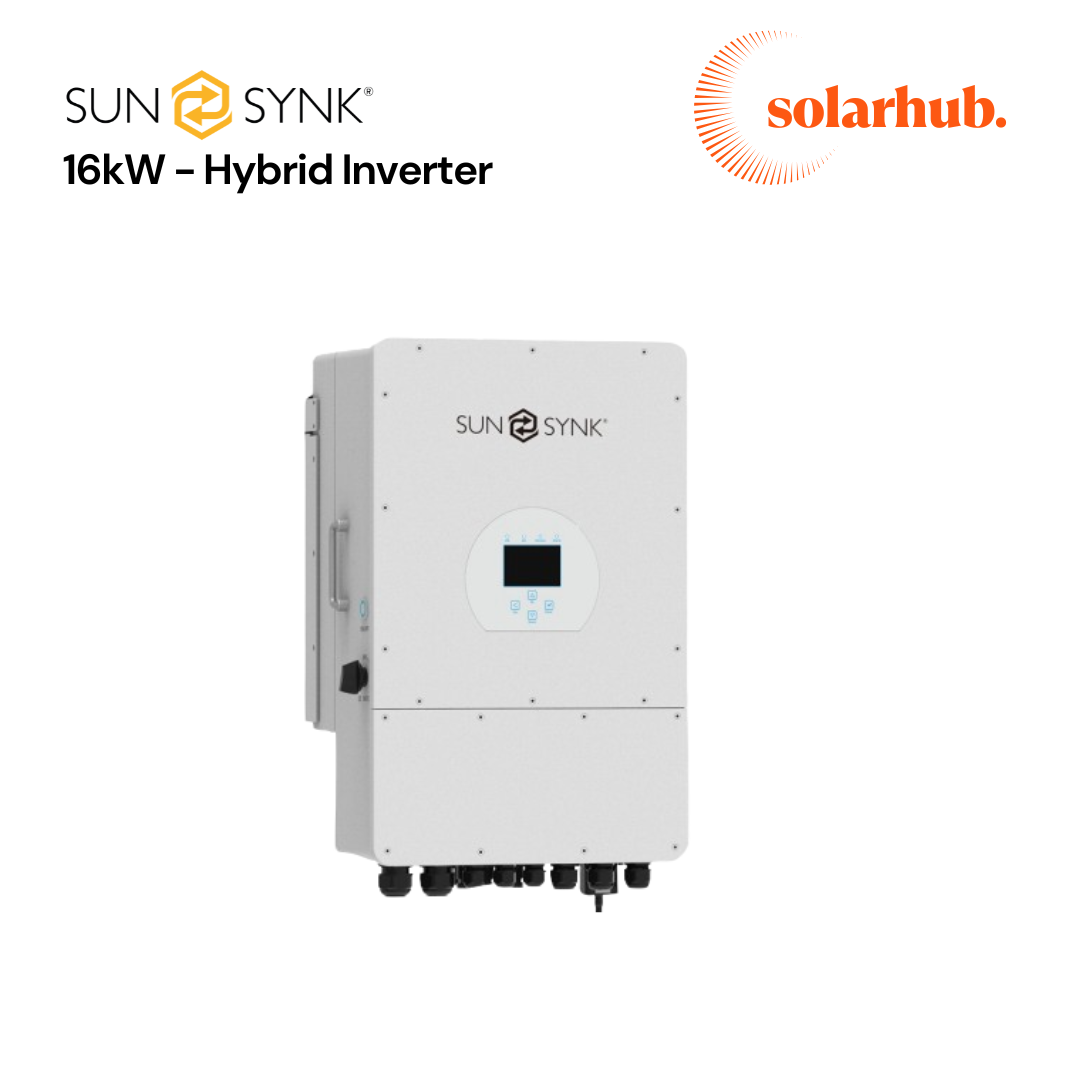

SunSynk MAX 16kW Single Phase Hybrid Inverter (3 MPPT)

Sunsynk MAX 16kW Hybrid Inverter – Single Phase

The Sunsynk MAX 16kW Hybrid Inverter is a high-performance energy management solution designed for large residential installations. Delivering exceptional output from a low-voltage system, this inverter enables seamless control of power flow between solar PV, battery storage, the grid, and backup generators.

With advanced programmability, smart monitoring, and robust build quality, the Sunsynk MAX is engineered for users looking to maximise energy independence and system efficiency.

Key Features

• 16kW maximum output for high-demand residential systems
• 300A battery charge current for rapid storage charging
• Dual MPPT trackers with support for multiple PV strings
• Wi-Fi monitoring for real-time system performance
• Programmable on-grid, off-grid & UPS modes
• Smart power flow management between solar, battery, grid, and generator
• Compatible with lithium-ion and lead-acid batteries
• Export limiting function to prevent excess power to grid
• Built-in protections: overload, over-temperature & short-circuit
• Suitable for outdoor installation (IP65 rated)
• Clear visual display with real-time power flow interface

Why Choose Sunsynk MAX?

Designed for larger properties and higher energy demands, the Sunsynk MAX provides powerful, flexible control over your energy system. With advanced features and high output capacity, it’s ideal for maximising self-consumption and reducing reliance on the grid.

Technical Specifications

• Max Output Power: 16kW
• Battery Charge Current: 300A
• Phase: Single Phase
• Dimensions (W × H × D): 464mm × 763mm × 282mm
• Weight: 60kg
• Ingress Protection: IP65

Warranty

• 5-Year Manufacturer Warranty

Downloads

Sunsynk 16kW Hybrid Inverter Data Sheet
