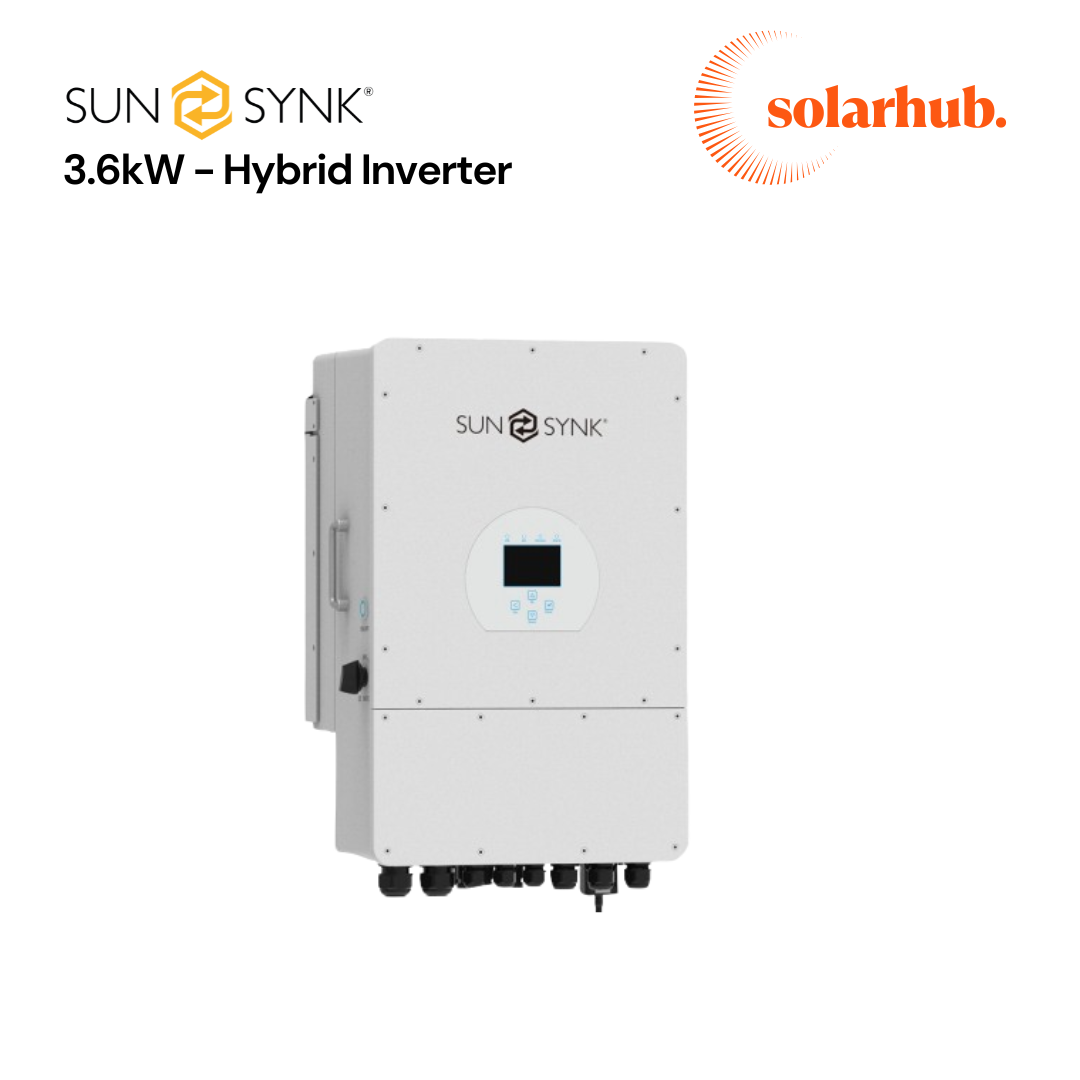

SunSynk 3.6/7kW Single Phase Hybrid Inverter (2 MPPT)

The SunSynk 3.6kW AC ECCO 7kWp Inverter is the next generation of super hybrid inverter with a 7000W MPPT and a rated AC output of 3.68 resulting in a system that can generate sufficient energy in Winter months to offset usage and charge a connected battery. The inverter boasts additional features such as;

• Dual MPPT design
• Compatible with Lithium-ion batteries and Lead Acid batteries
• Up to 50kWh battery pack
• 5yr warranty as standard
• IP65 rated
• Anti-islanding protection
• Fully programmable power export
• Automatic switching from Grid-Tied to Off-Grid mode
• Up to 16 units with the same firmware can be paralleled

Part No : SUNSYNK-3.5K-SGO1LP1 ECCO

• Weight : 20.5 kg
• Rated Power : 3,600 W
• Min PPT Voltage : 125 V
• Max PPT Voltage : 500 V
• DC Startup Voltage : 150 V
• DC Shutdown Voltage : 125 V
• Max Input Voltage : 500 V
• Max DC Power : 7,000 W

Downloads

Sunsynk 3.6/7kW Hybrid Data Sheet
