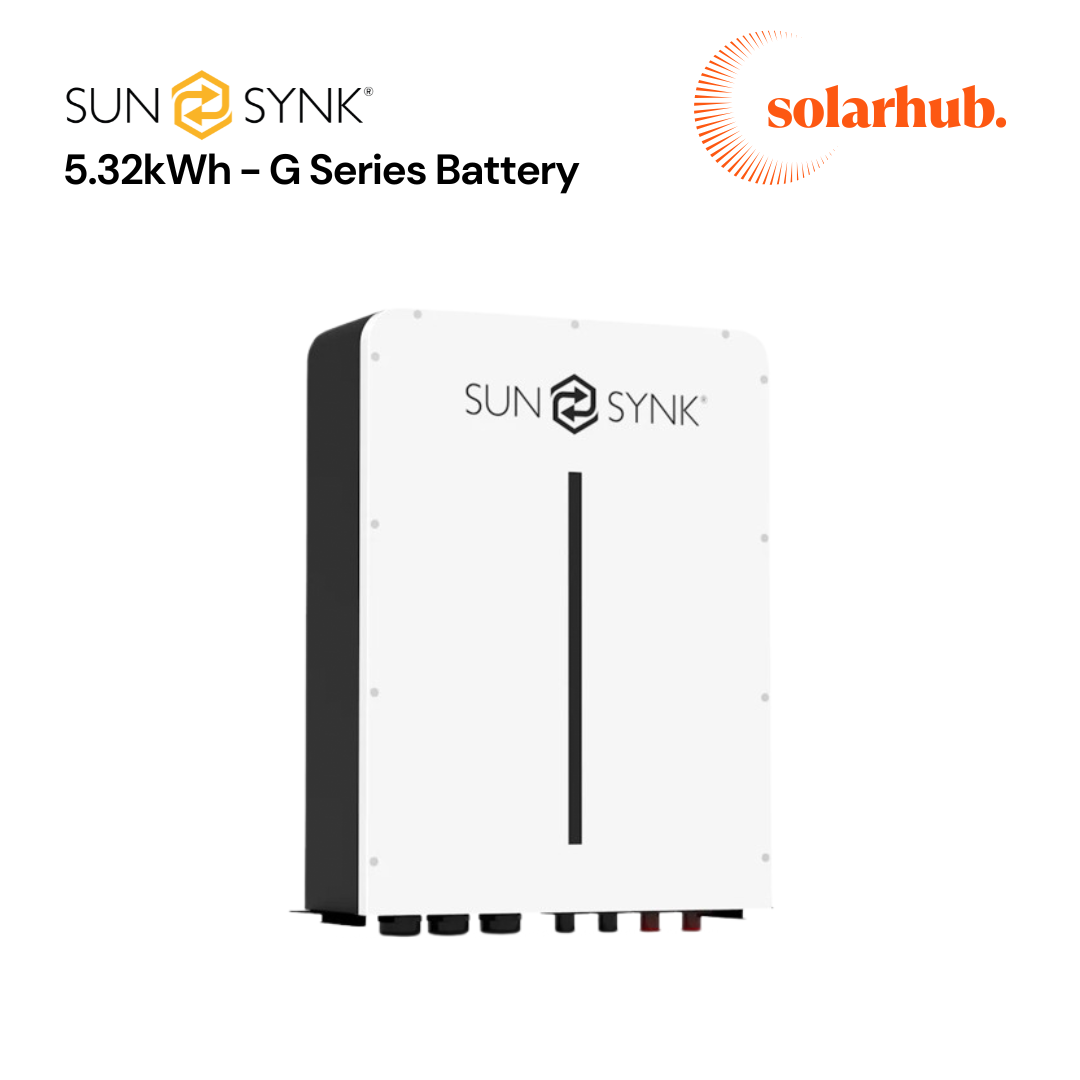

SunSynk 5.32kWh Generation 2 IP20 Battery Storage

 Sunsynk are an internationally recognised inverter and battery storage brand, who are determined to make the planet a cleaner and more sustainable place to live.

The Sunsynk G5.32kWh Lithium-Ion Phosphate Battery has an operating voltage range between 45.6 – 56.16V and is designed for residential energy storage applications. The battery can work together with a 48V hybrid inverter.

The Sunsynk 5.32kWh Battery incorporates a BMS (Battery Management System) to manage and monitor the cell information, including voltage, current and temperature. Multiple batteries (up to 8) can be connected in parallel to expand the capacity to the required level.

TECHNICAL SPECIFICATION

• Nominal voltage: 51.2 Vdc
• Nominal capacity: 104Ah
• Battery energy: 5320Wh
• Charge voltage: 55.68 – 56.16 Vdc
• Discharge voltage: 45.6 – 56.16 Vdc
• Max. charge / Discharge current: 100A
• Max. charge / Discharge power: 5000W
• Short circuit current: 350A
• Communication: RS232, RS485, CAN
• Cell technology: LiFePO4 Lithium-Ion Phosphate
• Dimensions: 450 x 150 x 533mm (W x D x H)
• Weight: 45kg
• Scalability: Max. 8 batteries in parallel

Downloads

Sunsynk 5.32kWh Battery Data Sheet
