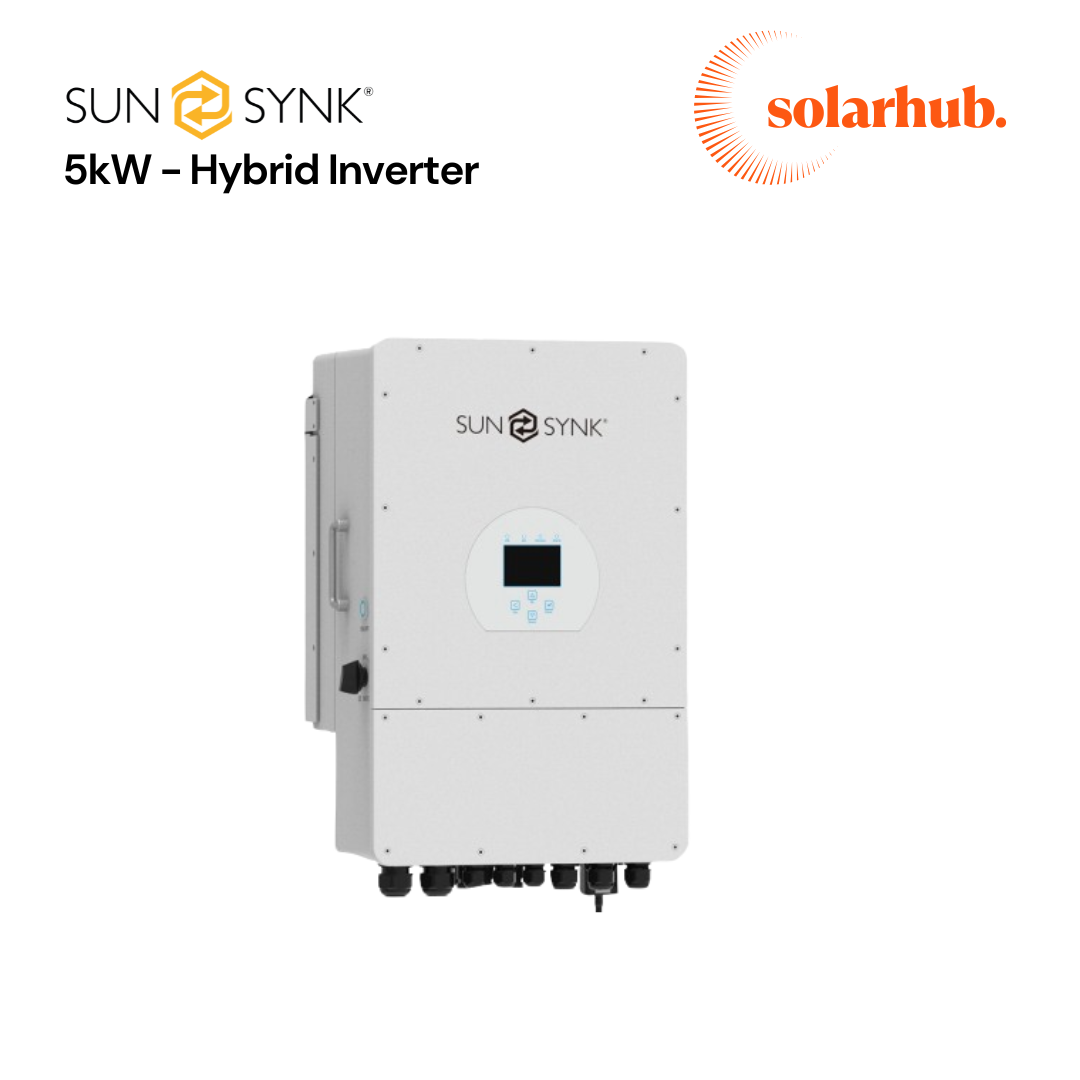

SunSynk 5kW Single Phase Hybrid Inverter (2 MPPT)

The Sunsynk Ecco 5kW Hybrid Inverter is a highly efficient power management tool, which is ideal for residential and light commercial use. The hybrid inverter has been designed to maximise the self-consumption rate of solar energy whilst reducing electricity bills.

The hybrid inverter works alongside a battery to store excess energy and re-distribute it as when it is required. The Ecco has a multi-core processor design with advanced MPPT control and includes a parallel/multi invert function for on or off-grid use.

Part No: 5KW-SG01LP1-EU

PRODUCT FEATURES

• Interactive display – easy and simple to understand
• Supports Wi-Fi or GSM monitoring
• Parallel / multi invert function grid-tied and off-grid
• Compatible with main electrical grid voltages or power generators
• Also compatible with wind turbines
• Self-consumption and feed-in to the grid
• Fully programmable controller
• Overload/over-temperature/short-circuit protection

TECHNICAL SPECIFICATION

• Rated AC Output and UPS Power: 5000W
• Max. AC power: 5500W
• Battery type: Lead acid or Lithium-ion
• Battery voltage range: 40-60V
• Max. charging/discharging current: 120A
• Max. DC input power: 6500W
• PV input voltage: 370V (125V – 500V)
• MPPT range: 150-425V
• Start-up voltage: 125V
• No. of MPPT / Strings Per MPPT: 2/1+1
• Maximum efficiency: 97.60%
• Weight: 20.5kg
• Dimensions: 330 x 580 x 232mm (W x H x D)
• Warranty: 5 years

Downloads

Sunsynk 5kW Hybrid Data Sheet
