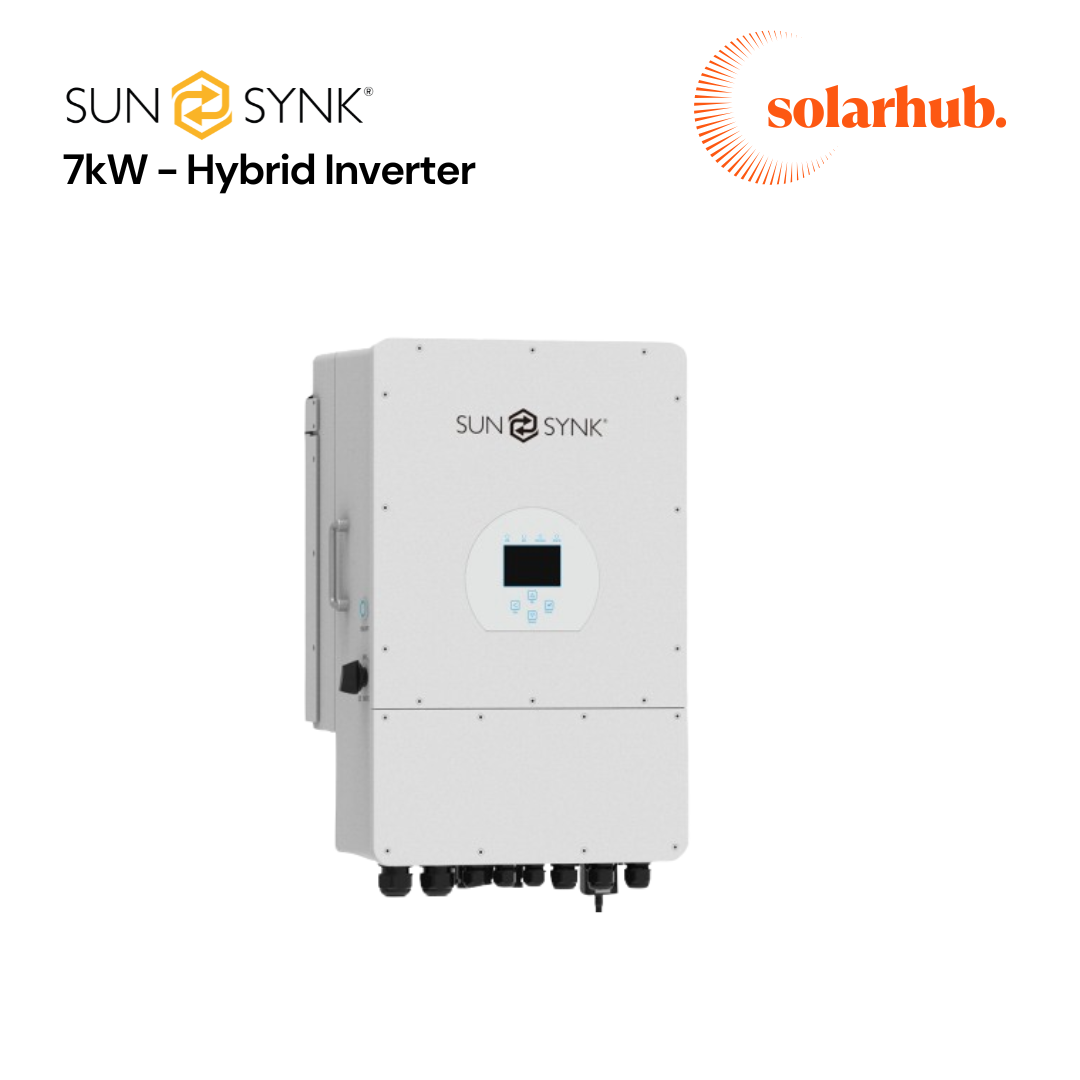

SunSynk 7kW Single Phase Hybrid Inverter (2 MPPT)

 The Sunsynk 7kW hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.

Product Features

• Dual MPPT design
• Compatible with most Lithium-ion batteries and Lead Acid batteries
• Mobile App for monitoring
• IP65 rated
• Automatic switching from Grid-Tied to Off-Grid mode
• Zero export function
• Up to 16 units with the same firmware can be paralleled
• Essential and Non-Essential Loads outputs
• Comes with the Wi-Fi logger and CT
• Compatible with SolarMan App for Monitoring

Specs

• Weight: 25 kg
• Rated Power: 7,000 W
• Min PPT Voltage: 125 V
• Max PPT Voltage: 425 V
• DC Startup Voltage: 150 V
• DC Shutdown Voltage: 150 V
• Max Input Voltage: 500 V
• Max DC Power: 10,400 W
• Max AC Power (5 Minutes): 7,001 W
• Surge AC Power (1 Second): 7,002 W
• Max DC Current: 44 A
• Max DC Inputs: 2
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 0
• Euro Efficiency:96.5 %
• Transformer: None
• MPPT Quantity: 2
• Has Integrated DC Switch: Yes

Downloads

Sunsynk 7kW Hybrid Inverter Data Sheet
