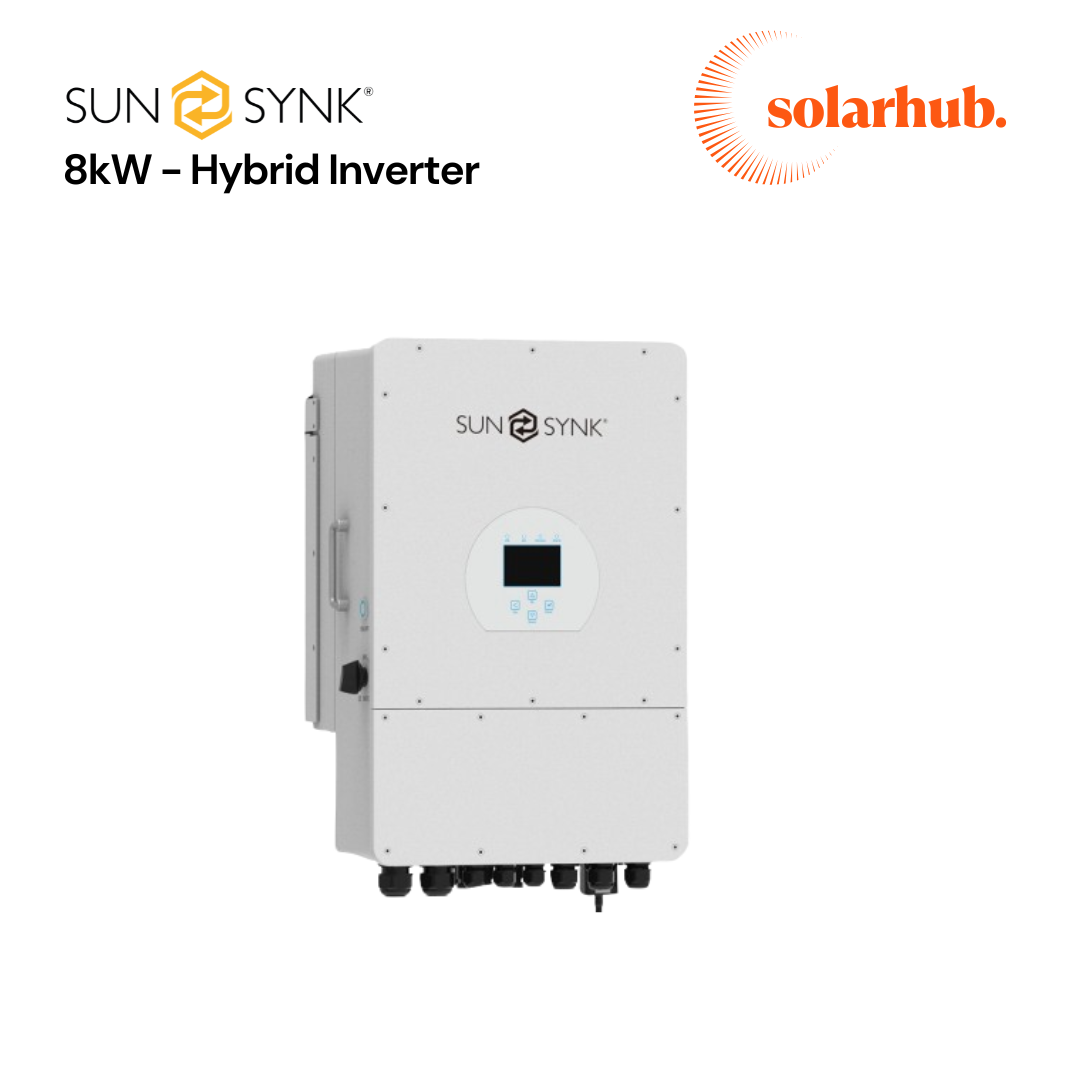

SunSynk 8kW Single Phase Hybrid Inverter (2 MPPT)

 The Sunsynk 8kW hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.

The Ecco Hybrid Inverter helps to reduce electricity costs by managing power from various sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine.

The hybrid inverter works alongside a battery to store excess energy and re-distribute it as when it is required. The Ecco has a multi-core processor design with advanced MPPT control and includes a parallel/multi invert function for on or off-grid use.

PRODUCT FEATURES

• Interactive display – easy and simple to understand
• Supports Wi-Fi or GSM monitoring
• Parallel / multi invert function grid-tied and off-grid
• Compatible with main electrical grid voltages or power generators
• Also compatible with wind turbines
• Self-consumption and feed-in to the grid
• Fully programmable controller
• Overload/over-temperature/short-circuit protection

TECHNICAL SPECIFICATION

• Rated AC Output and UPS Power: 8000W
• Max. AC power: 8800W
• Battery type: Lead acid or Lithium-ion
• Battery voltage range: 40-60V
• Max. charging/discharging current: 190A
• Max. DC input power: 10400W
• PV input voltage: 370V (125V – 500V)
• MPPT range: 150-425V
• Start-up voltage: 125V
• No. of MPPT / Strings Per MPPT: 2/1+1
• Maximum efficiency: 97.60%
• Protection degree: IP65
• Weight: 20.5kg
• Dimensions: 330 x 580 x 232mm (W x H x D)
• Warranty: 5 years

Downloads

Sunsynk 8kW Hybrid Inverter Data Sheet
