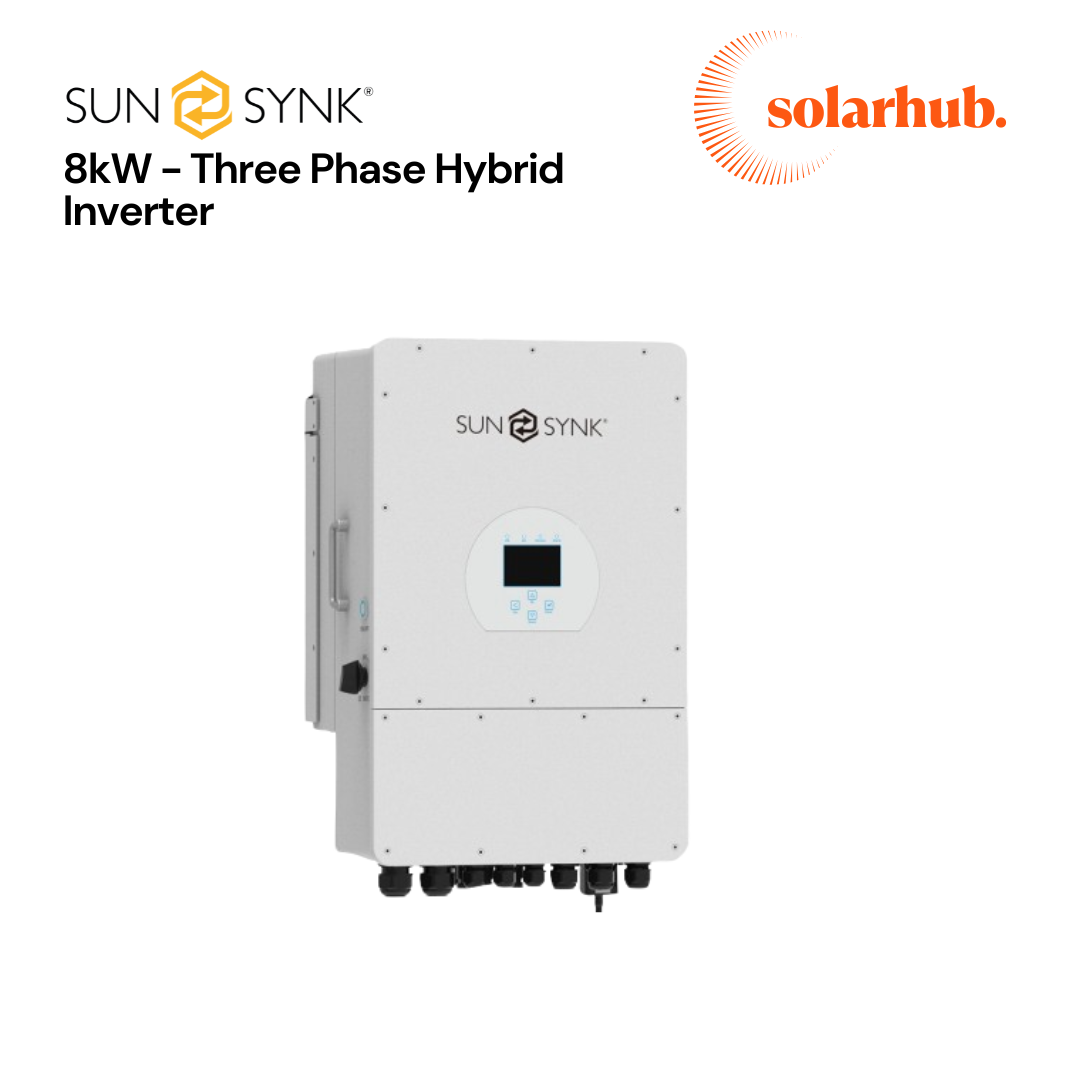

SunSynk 8kW Three Phase Hybrid Inverter (2 MPPT)

The Sunsynk 8kW three-phase hybrid inverter is an ideal solution to reduce your electricity costs and manage power from various energy sources. Whether it's solar panels, batteries, the national grid, a generator or even a wind turbine, this hybrid inverter can handle it all.

This three-phase inverter can charge both lead-acid and lithium-ion batteries, and innovatively works to balance the load across the three phases to avoid overloading. With seamless energy load balancing, this inverter can handle a load distribution of 20% on one phase, 20% on another, and 60% on the third phase, while still delivering perfect phase rotation.

Key features:

• Easy-to-understand display
• Supports Wi-Fi or GSM monitoring
• Compatible with lithium-ion and lead-acid batteries
• Smart-settable three-stage MPPT charging for optimised battery performance
• Compatible with mains electrical grid voltages, power generators or wind turbines
• DC- and AC-coupled to retrofit to existing solar system
• Programmable supply priority for battery or grid

• High reliability and response speed
• Programmable export
• Works on or off-grid and with up to sixteen modules in parallel
• Can operate in single-phase or three-phase mode

• Dimensions: 422mm (W) x 702mm (H) x 281mm (D)
• Weight: 47.5kg
• Rated IP65 for ingress protection
• Five-year standard warranty

Downloads

Sunsynk 8kW Three Phase Hybrid Inverter Data Sheet
