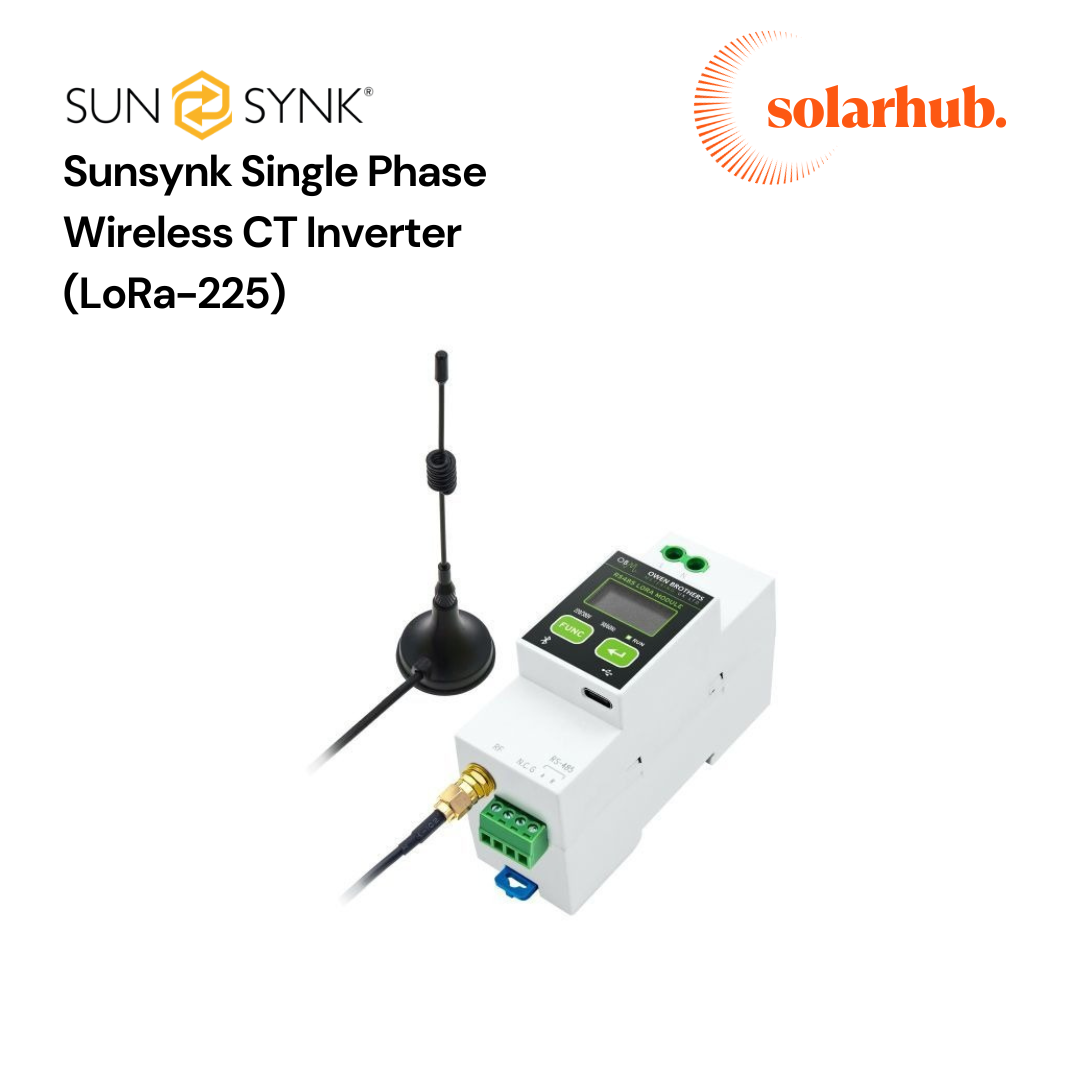

Sunsynk Single Phase Wireless CT Inverter (LoRa-225)

Sunsynk Wireless CT Solution

Our Sunsynk Wireless CT Solution provides a reliable wireless connection between your Sunsynk inverter and the property's main incomer, eliminating the need for a wired CT connection between the two locations.

Inverter LoRa Unit

1 × OBM-LoRa-225 pre-wired for connection to the inverter RS485 meter port, complete with standard LoRa antenna.

The latest-generation OBM-LoRa-225 features upgraded firmware, Bluetooth programmability, increased spread factor and support for baud rates up to 115200, providing improved compatibility with a wide range of inverters and RS485 Modbus devices.

Solar Hub comment: The updated LoRa module provides a flexible solution where a conventional wired CT connection isn't practical, particularly where the inverter and main incomer are located some distance apart.

An optional generation meter can also be added.

Wireless Import/Export Meter with LoRa Unit

1 × OB115-MOD 100A MID Meter with 3m CT lead and 1 × OBM-LoRa-225 module, complete with standard LoRa antenna.

OB115-MOD 100A MID Meter

A high-precision, single-phase kWh meter supplied with a split-core CT and 3m lead as standard. A solid-core CT is also available on request.

Key Features:

• Class 0.1 accuracy
• 100A MID-approved meter
• RS485 Modbus RTU communication
• Fully programmable
• Baud rates up to 115200 bps
• Modbus ID adjustable via button press
• Bi-directional import/export measurement
• Voltage, current and power factor monitoring
• Frequency, reactive power and apparent power measurement
• AMR compatible

Compatibility

Please note: This kit is not compatible with Sunsynk Lifelynk inverters, with the exception of the Lifelynk XL model.

Why Buy from Solar Hub?

• UK stock
• Next-day nationwide delivery
• Trade pricing available
• Technical support
• Free system design
• Trade and credit accounts available

Downloads

Sunsynk Single Phase Wireless CT Inverter (LoRa-225) Data Sheet
