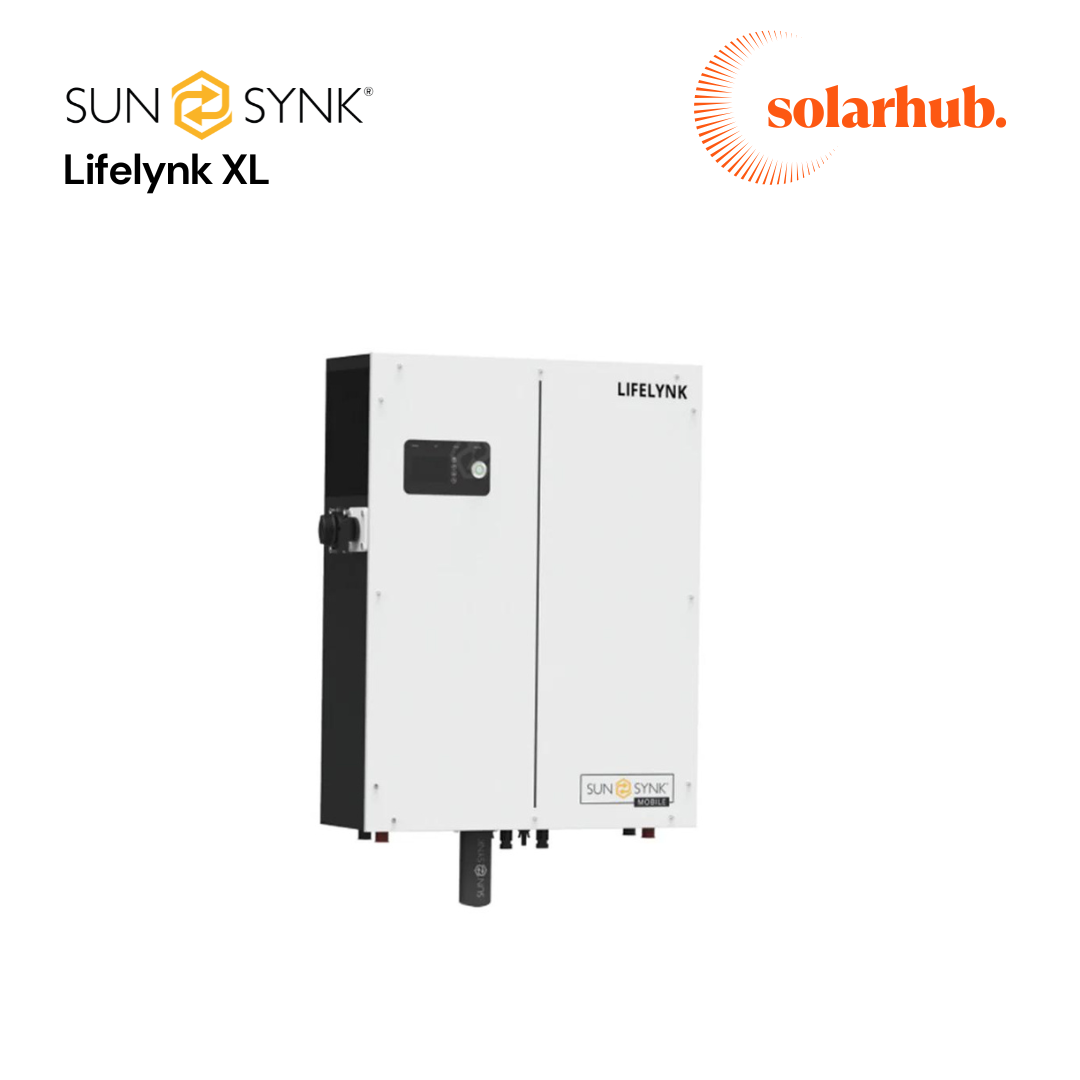

Sunsynk Lifelynk XL 5.5kW Hybrid Inverter & 5.22kWh Battery

£1,680.00
Unit price  per
history

All-in-one, plug-&-play and expandable.

A fully plug-and-play system that simplifies and speeds up the installation, allowing for more efficient planning and implementation on large volume rollouts in new house builds or retrofits.

The Lifelynk X houses a 5.5kW hybrid inverter, 5.22kWh battery and allows for the parallel operation of up to 6 additional inverters and batteries per inverter. (see manual)

Unlock the full potential with our dedicated Sunsynk Connect platform which enables full control, visibility, and access to the system, making site-specific customisation simple.

The Lifelynk comes complete with everything you need to install this cutting-edge storage solution. In-built connection points on the bottom of the Lifelynk give access to the Load, Grid, CT, and Wi-Fi Data logger ports, making it a true “plug and play” system, the simple wall mount bracket makes for easy installation. From the pre-set factory settings to the in-built connection ports, the Lifelynk has been designed with convenience and hassle-free installation in mind.

Battery Input Parameters:

  • Suppoerted Battery Type: LiFePO4
  • Nominal Battery Voltage (V): 51.2
  • Battery Input Voltage Range (V): 43.2-57.6
  • Max. Charge Voltage (V): 60 (Configurable)
  • Max. Charge Current (A): 90 (Configurable)
  • Max Discharge Current (A): 120 (Configurable)
  • Battery Capacity (Wh): 5223

PV String Input Parameters:

  • Max. DC Input Power (W): 6800
  • Max. DC Input Voltage (V): 500
  • MPPT Voltage Range (V): 120-450
  • Start-Up Voltage (V): 150
  • Max. Input Current (A): 16 x 2

AC Output Parameters (Back-Up) (Feed to Essential Load)

  • Max. Output Power (W): 5500
  • Max. Output Apparent Power (VA): 5500
  • Peak Output Apparent Power (VA): 1100
  • Max. Output Current (A): 24
  • Nominal Output Voltage (Vac): 230
  • Nominal Output Frenquency (Hz): 50
  • Max. Bypass Current (A): 40
  • Shift Time (Bypass and Inverter) (ms): 10
  • Output THD (Resistor Load):<3%

AC Input Parameter (On-Grid)

  • Max. Input Power (W): 5500
  • Max. Output Power (W) (Feed to Home Load): 5500
  • Max. Apparent Input Power (VA): 5500
  • Max. Apparent Output Power (VA): 5500
  • Nominal Input / Output Voltage (Vac): 230
  • Nominal Input / Output Frequency (Hz): 50
  • Max. Bypass Current (A): 40
  • Shift Time (Bypass and Inverter) (ms): 10

Dimensions:

  • Size (Hx L x W mm): 901 x 624 x 182
  • Net Weight: 82kg
